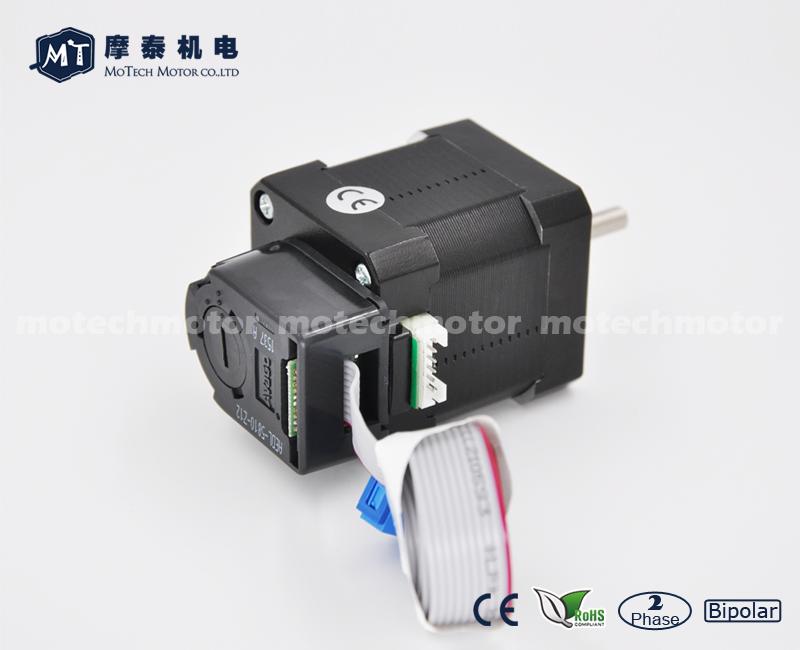

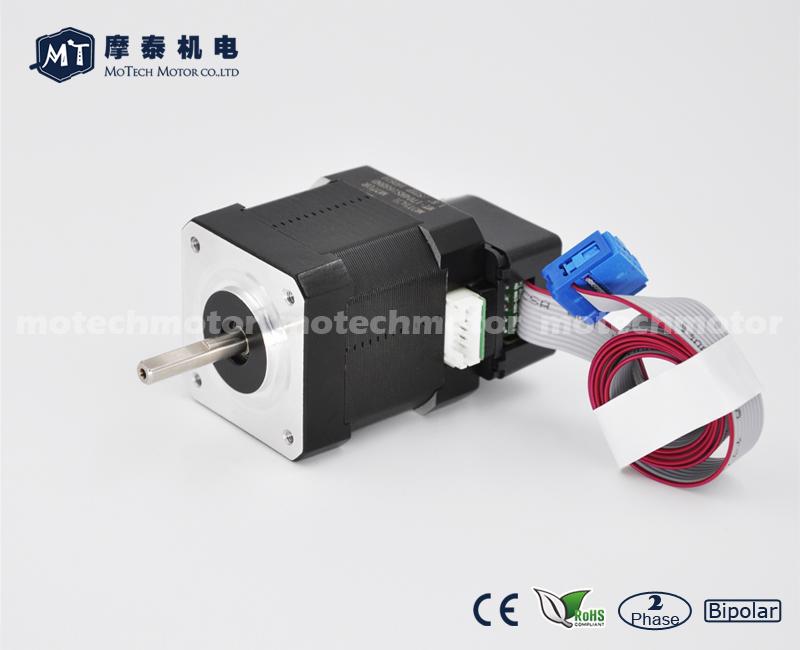

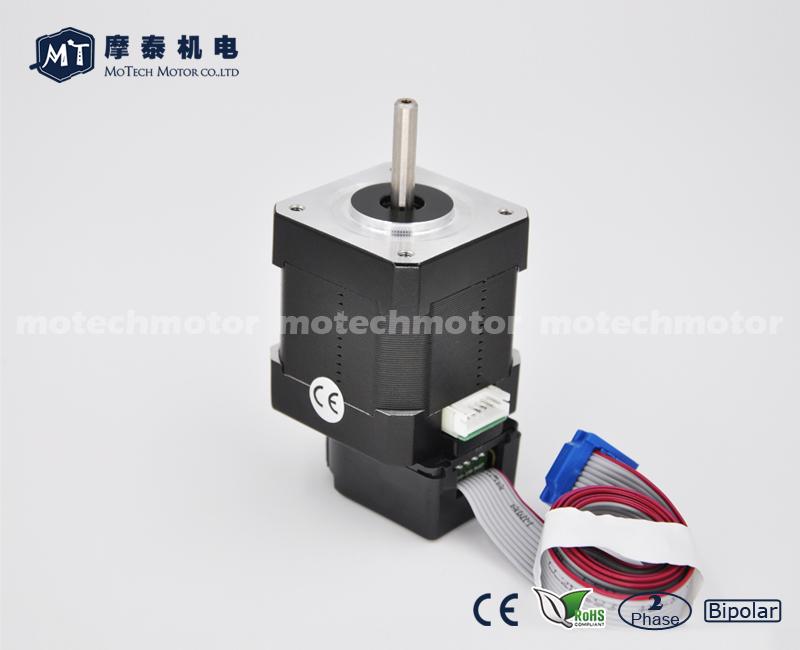

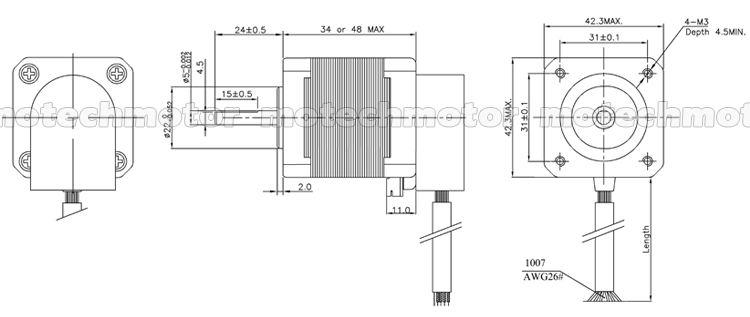

Closed Loop Stepper Motor
|
Item |
Specifications |
|
Step Angle |
1.8° |
|
Step Angle Accuracy |
1.8°±5% (full step, no load) |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature Rise |
80°C Max.(2 phase on) |
|
Ambient Temperature |
-20°C~+50°C |
|
Insulation Class |
B, 130°C |
|
Insulation Resistance |
100MΩMin. , 500VDC |
|
Shaft Radial Play |
0.02Max. (450 g-load) |
|
Shaft Axial Play |
0.08Max. (450 g-load) |
|
Max. radial force |
28N (20mm from the flange) |
|
Max. axial force |
10N |
|
Model # Single Shaft |
Rated Current (Amps/Phase) |
Holding Torque (oz.in) |
Holding Torque (kg.cm) |
Resistance (Ohms/Phase) |
Inductance (mH/Phase) |
Inertia (g.cm2) |
Detent Torque (g.cm) |
Weight (kg) |
Recommended Voltage (V DC) |
|
MT-1702HS133BN |
1.33 | 44.0 | 3.2 | 2.10 | 2.5 | 35 | 120 | 0.22 | 12-24 |
|
MT-1704HS168BN |
1.68 | 77.0 | 5.5 | 1.65 | 2.8 | 68 | 200 | 0.35 | 12-24 |
HIGH RESOLUTION ENCODER
· Feature
It has 3 square-wave outputs which are 90-degree phase shifted for counting and direction information and one optional index channel.
· Specification
· Electrical Specifications
Output Wave
Square Wave
Supply Voltage
4.5-5.5V
Supply Current
≤85mA
Rise/fall time
10 ns
Frequency
1000KHz
Output Phase Difference
90°± 45°
Output Voltage
0.5V
Signal Level
Vh≥85%Vcc, VL≤0.3V
· Mechanical Specifications
Rotor Inertia Of Code-Wheel
6.0x10-8 Kgm2
Shock Resistance
980m/s2, 6ms, 2 times each on XYZ
Vibration Proof
50m/s2, 10-200Hz, 2 hours each on XYZ
Working Life
MTBF≥50000h (+25℃, 2000rpm)
Weight
15g
· Environmental Specifications
Working Humidity
30-85% (no condensation)
Working Tem.
-40℃-85℃
Storage Tem.
-40℃-85℃
Weld Tem.
≤260℃
· Connection Table
|
Differential (Line Driver Output) |
0V |
Vcc |
A |
A/ |
B | B/ |
Z |
Z/ | ||
According to different requirement and application, we provide customized motor.
Common cases:
1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

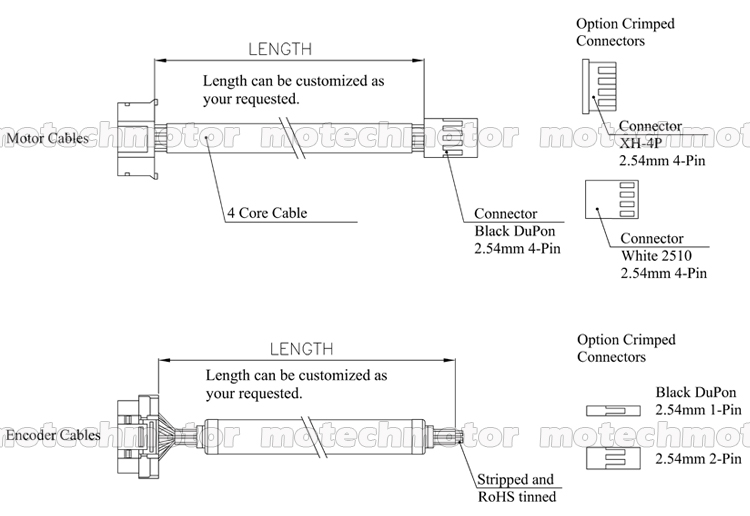

2) Special lead lengths, cables and crimped various connectors
3) Different pulleys, gears and couplings
4) Encoders, brakes and integrated drivers
5) Waterproof and dustproof treatment
6) High-temperature resistance
If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
