08E Series

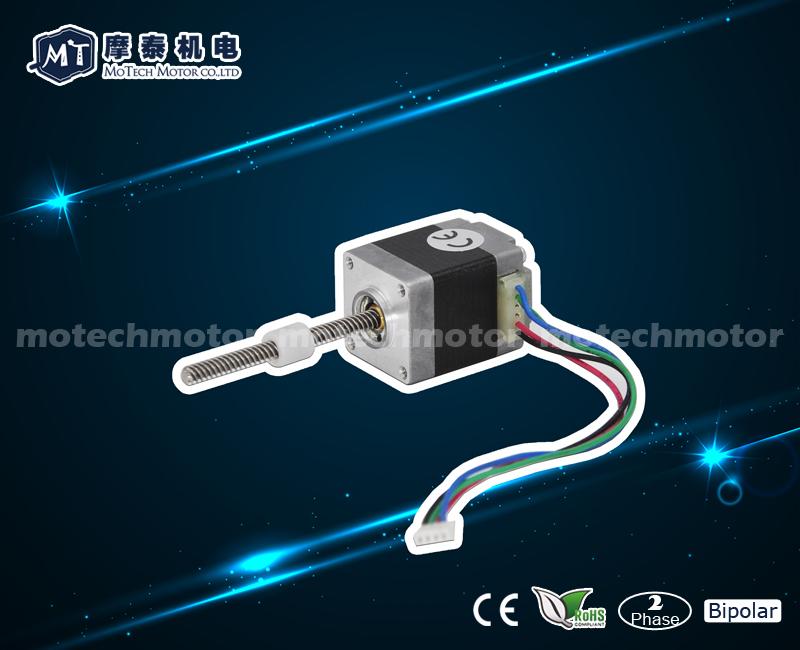

Nema 08 Linear Actuators | Model Number: MT-08E | Holding Torque: 0.15~0.18kg.cm (2.1~2.5oz.in) | Current / Phase: 0.5A~0.75A | Frame Size: 20*20mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question

Motor Specifications

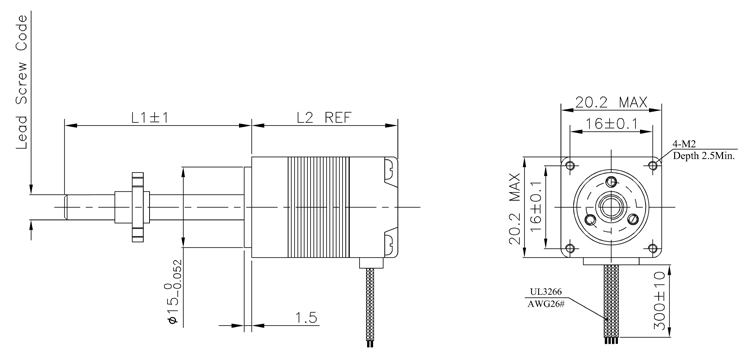

Dimension

“L2” Max

"E" External Nut

Model

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

27.5mm
(1.08")
MT-0801E050囗-L1 0.5 2.1 150 5.0
29.5mm
(1.16")
MT-0802E075囗-L1
0.75 2.5 180 5.8
 * Replace 囗 in model number with desired leadscrew.

Available Lead-screws

Leadscrew Code


Screw Dia.

(mm)

Screw Dia.

(inch)

Lead

(mm)

Pitch

(mm)

Travel per 1.8° Step

(mm)

A1
3.6 9/64'' 0.61 0.61 0.0031
A2 1.22 1.22 0.0061
A3 2.44 1.22 0.0122
D1 5.0 3/16'' 2.00 1.00 0.01
* These values have been rounded off.

External nut


Custom service


According to different requirement and application, we provide customized motor.

Common cases:

1)  Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2)  Special lead lengths, cables and crimped various connectors

3)  Different pulleys, gears and couplings

4)  Encoders, brakes and integrated drivers

5)  Waterproof and dustproof treatment

6)  High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
