Nema 23 Closed Loop

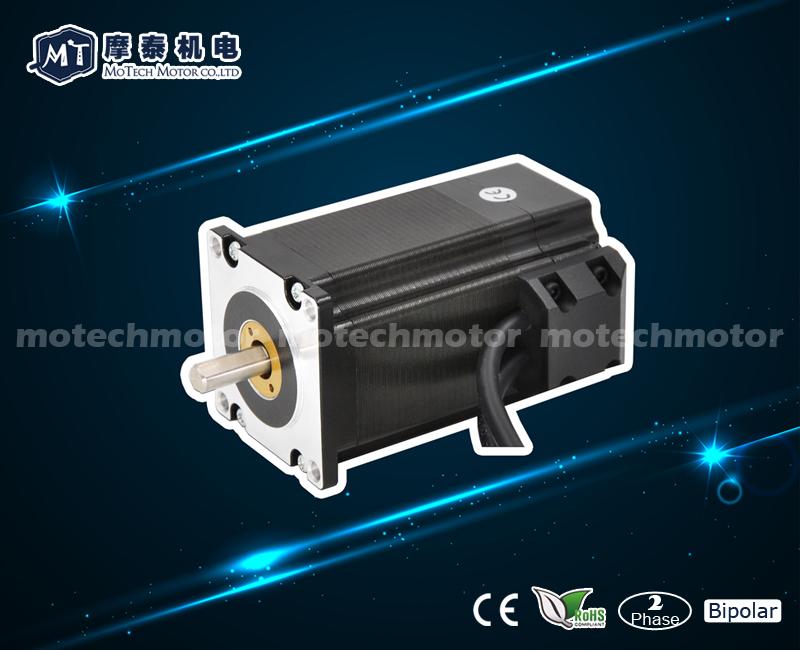

Nema 23 Closed Loop Stepper Motor | Model Number: MT-23**HS**EC | Step Angel: 1.8° | Holding Torque: 181.0~514.0 oz.in (13.0~37.0 kg.cm) | Current / Phase: 3.50~4.50 A | Frame Size: 57*57mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question

Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130°C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
75N  (20mm from the flange)
Max. axial force
15N

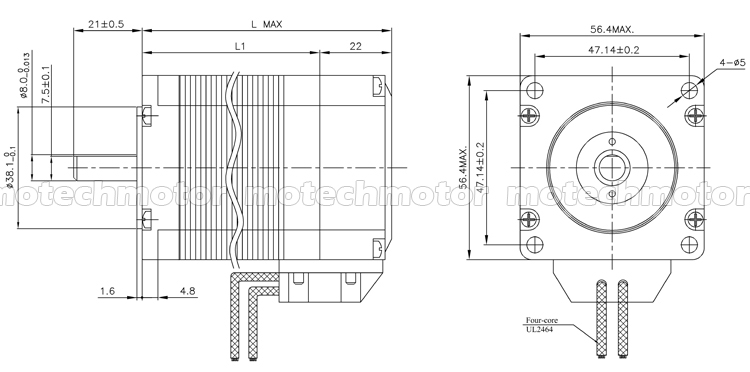

Dimension

(Length "L1" mm)

Model #

Single Shaft

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

Inertia

(g.cm2)

Resolution

CPR

Speed Ranage

RPM

56(L1)+22
(3.07")
MT-2303HS350EC-1000
3.50 181.0 13.0 0.60 2.6 260 1000 ≤5000rpm

77(L1)+22

(3.90")

MT-2305HS450EC-1000
4.50 306.0 22.0 0.55 2.0 450

100(L1)+22

(4.80")

MT-2306HS450EC-1000
4.50 445.0 32.0 0.95 3.7 680

110(L1)+22

(5.20")

MT-2307HS400EC-1000
4.00 514.0 37.0 1.16 4.5 810


Encoder Specs

Driving Voltage
5V
Current Consumption
≤60mA
Output Current
0-5mA
Output Method Output Differential (Line Driver Output), Two Channels
Response Frequency
0-100KHz
Working Tem.
--25℃-85℃
Working Humidity
30-85% (no condensation)
IP Protection
IP20


Differential (Line Driver Output)
Vcc 5V
Gnd
SIG A+
SIG A-
SIG B+
SIG B-
Cable Color (Round shield cable)
RED
BLK
BLU
WHT
BLU
ORG
WHT
ORG

Leads/Wires


Custom service


According to different requirement and application, we provide customized motor.

Common cases:

1)  Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2)  Special lead lengths, cables and crimped various connectors

3)  Different pulleys, gears and couplings

4)  Encoders, brakes and integrated drivers

5)  Waterproof and dustproof treatment

6)  High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
