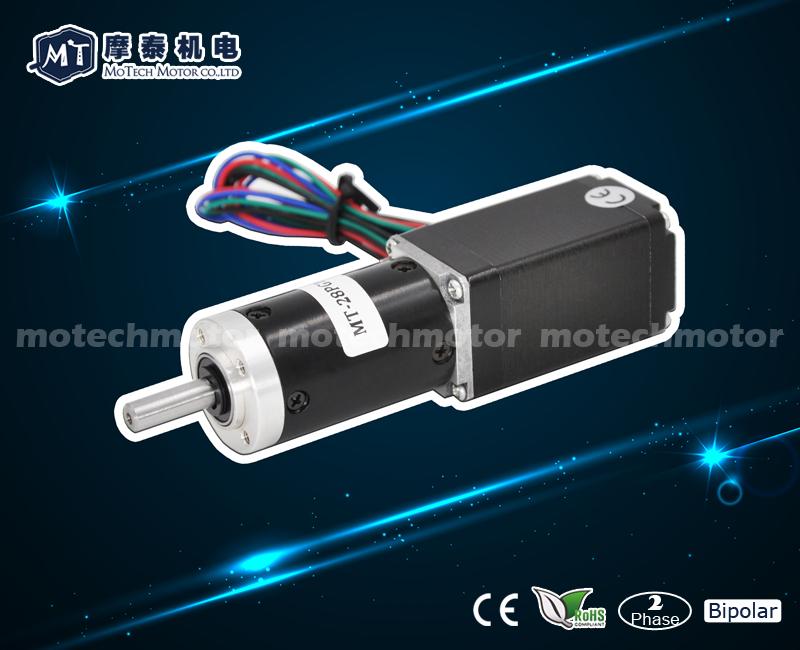

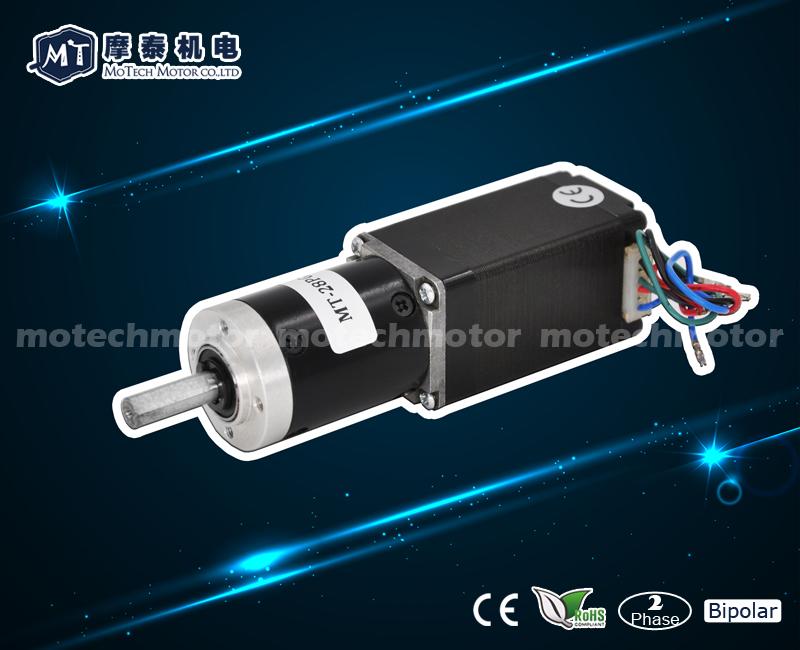

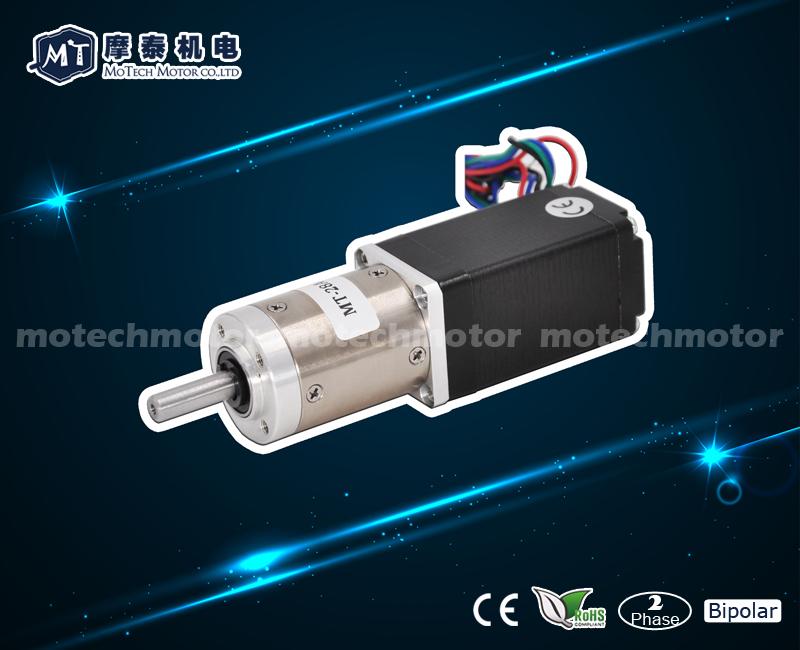

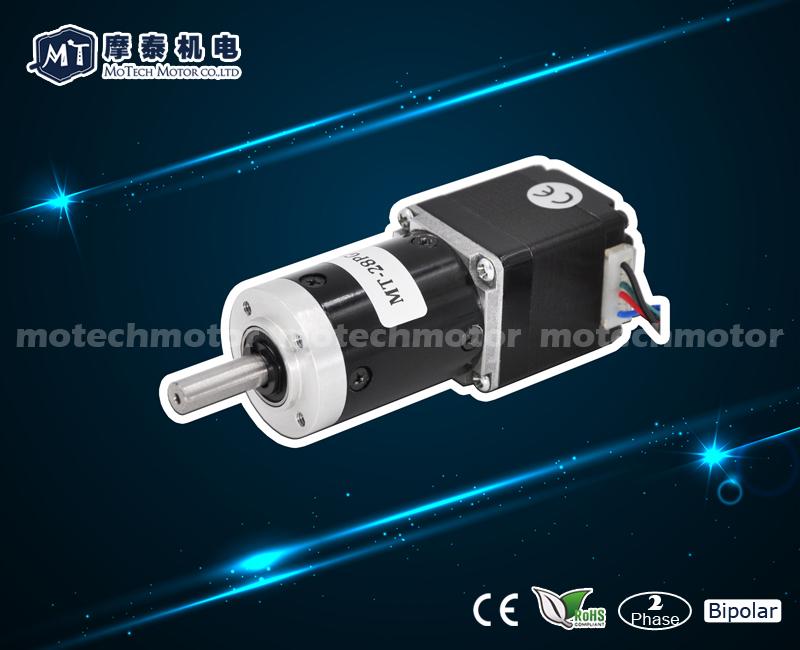

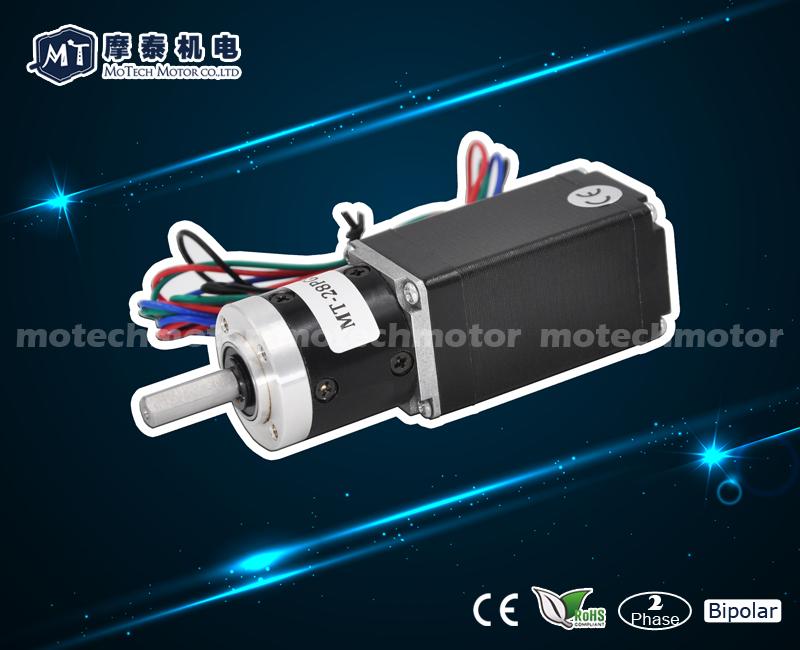

Economy Gearbox|
Item |
Specifications |
|
Housing Material |
Metal |
|
Bearing At Output |
Ball Bearing |
|
Max Radial Load |
35N (10mm from flange) |
|
Max. axial force |
25N |
|
Shaft Radial Play |
0.04Max. |
|
Shaft Axial Play |
0.3Max. |
|
Backlash Error |
1.0° |
|

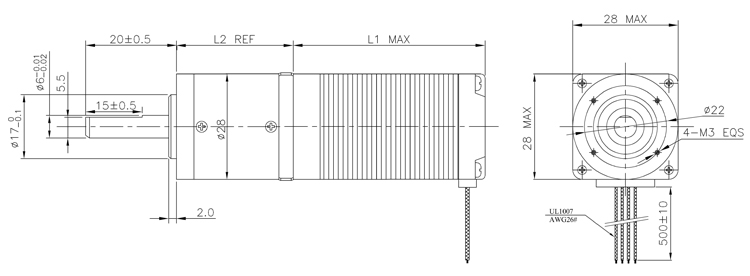

Dimension “L1” Max |
Model # Single Shaft |
Rated Current
(Amps/Phase) |
Holding Torque
(oz.in) |
Holding Torque
(kg.cm) |
Resistance
(Ohms/Phase) |
Inductance
(mH/Phase) |
Inertia
(g.cm2) |
Weight (kg) |
Max. Gear Ratio |
|
32.0mm
(1.26")
|
MT-1101HS070A | 0.70 | 8.3 | 0.60 | 5.6 | 3.4 | 9.0 | 0.11 | ≤1:189 |
|
44.5mm
(1.75")
|
MT-1102HS070A |
0.70 | 13.2 | 0.95 | 6.8 | 4.9 | 12.0 | 0.14 | |
|
51.0mm
(2.00")
|
MT-1103HS070A |
0.70 | 16.7 | 1.20 | 9.2 | 7.2 | 18.0 | 0.20 |
Reduction Ratio
3.7
5.18
13.7
19.2
26.8
50.9
71.2
99.5
189
Number of Stage
1-stage
2-stage
3-stage
4-stage
Rated Tolearance Torque
12 kg.cm
20 kg.cm
32 kg.cm
40 kg.cm
Max Breaking Torque
36 kg.cm
60 kg.cm
96 kg.cm
120 kg.cm
Efficiency
90%
81%
73%
66%
Gearbox Length ("L2" Max)
31.0mm
40.1mm
49.0mm
57.9mm
Weight (g)
60
85
95
110
Leads/Wires
According to different requirement and application, we provide customized motor.
Common cases:
1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.
2) Special lead lengths, cables and crimped various connectors
3) Different pulleys, gears and couplings
4) Encoders, brakes and integrated drivers
5) Waterproof and dustproof treatment
6) High-temperature resistance
If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
