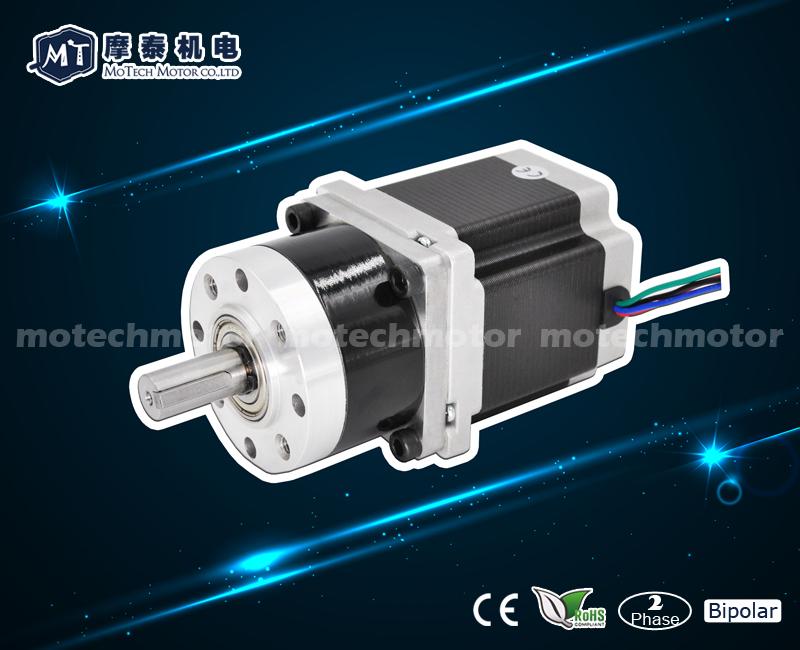

Economy Gearbox|
Item |
Specifications |
|
Housing Material |
Metal |
|
Bearing At Output |
Ball Bearing |
|
Max Radial Load |
250N (12mm from flange) |
|
Max. axial force |
100N |
|
Shaft Radial Play |
0.08Max. |
|
Shaft Axial Play |
0.4Max. |
|
Backlash Error |
1.5° |
|

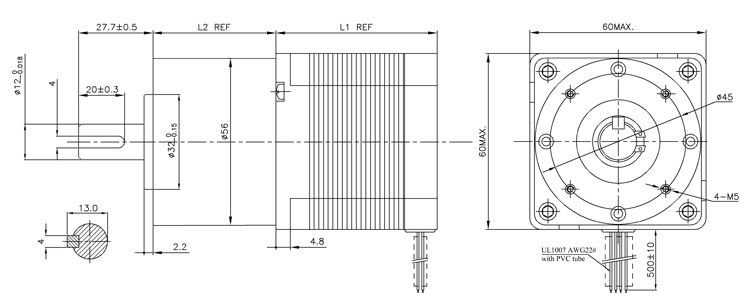

Dimension “L1” Max |
Model # Single Shaft |
Rated Current (Amps/Phase) |
Holding Torque (oz.in) |
Holding Torque (kg.cm) |
Resistance (Ohms/Phase) |
Inductance (mH/Phase) |
Inertia (g.cm2) |
Detent Torque (g.cm) |
Weight (kg) |
Max. Gear Ratio |
|
56.0mm
(2.20")
|
MT-2402HS280AW |
2.80 |
229 | 16.5 | 0.90 | 3.6 | 400 | 700 | 0.80 |
≤1:77 |
|
65.0mm
(2.56")
|
MT-2403HS280AW |
2.80 | 292 | 21.0 | 1.2 | 4.6 | 570 | 900 | 0.95 |
Reduction Ratio
3.6
4.25
13
15
18
47
55
65
77
Number of Stage
1-stage
2-stage
3-stage
Rated Tolearance Torque
20 N.m
30 N.m
40 N.m
Max Breaking Torque
30 N.m
50 N.m
60 N.m
Efficiency
90%
81%
73%
Gearbox Length ("L2" Max)
41.5mm
53.0mm
64.5mm
Leads/Wires
According to different requirement and application, we provide customized motor.
Common cases:
1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.
2) Special lead lengths, cables and crimped various connectors
3) Different pulleys, gears and couplings
4) Encoders, brakes and integrated drivers
5) Waterproof and dustproof treatment
6) High-temperature resistance
