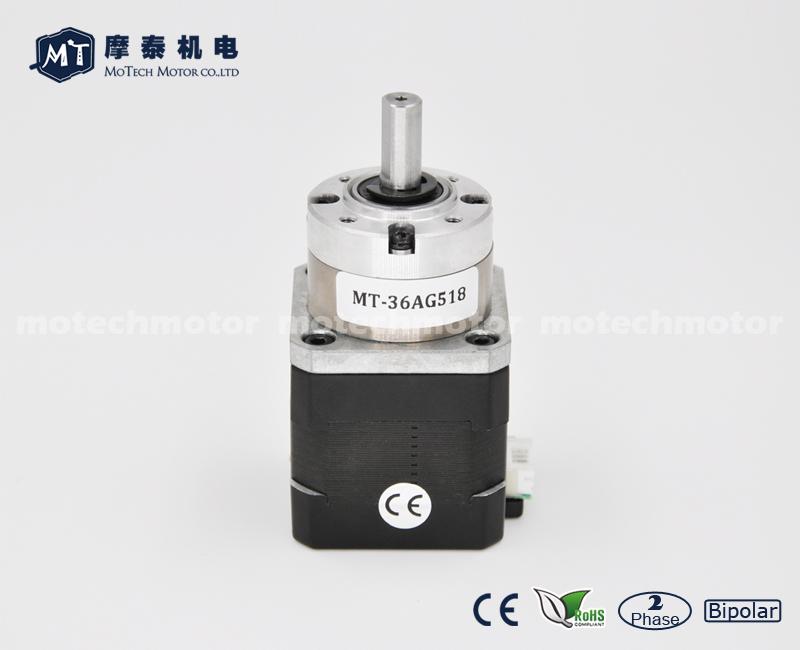

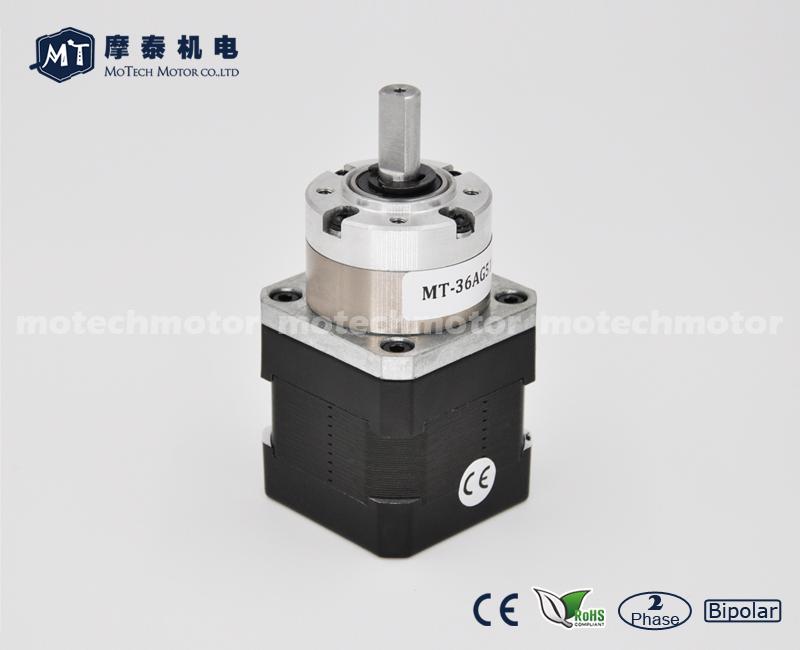

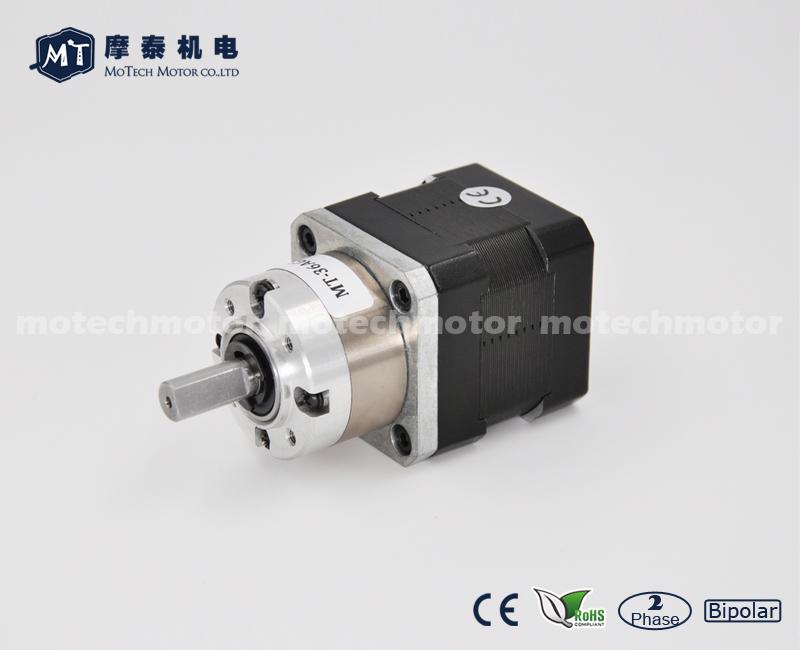

Economy Gearbox|
Item |
Specifications |
|
Housing Material |
Metal |
|
Bearing At Output |
Ball Bearing |
|
Max Radial Load |
98.1N (10mm from flange) |
|
Max. axial force |
49.1N |
|
Shaft Radial Play |
0.05Max. |
|
Shaft Axial Play |
0.3Max. |
|
Backlash Error |
1.0° |
|

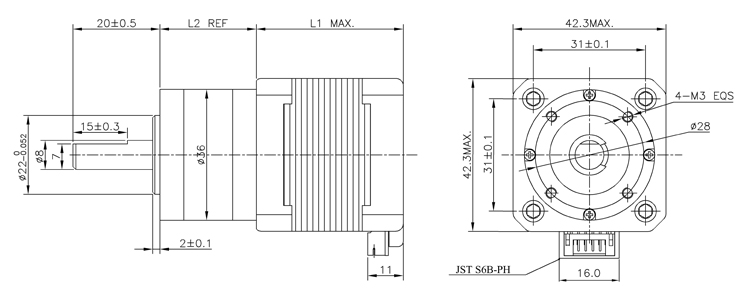

Dimension “L1” Max |
Model # Single Shaft |
Rated Current
(Amps/Phase) |
Holding Torque
(oz.in) |
Holding Torque
(kg.cm) |
Resistance
(Ohms/Phase) |
Inductance
(mH/Phase) |
Inertia
(g.cm2) |
Detent Torque (g.cm) |
Weight (kg) |
Max. Gear Ratio |
|
34.0mm
(1.34")
|
MT-1702HS133A | 1.33 | 44.0 | 3.2 | 2.1 | 2.5 | 35 | 120 | 0.22 | ≤1:100 |
|
40.0mm
(1.57")
|
MT-1703HS120A |
1.20 | 62.0 | 4.4 | 3.0 | 6.0 | 54 | 150 | 0.28 |
≤1:71 |
|
48.0mm
(1.89")
|
MT-1704HS168A |
1.68 | 77.0 | 5.5 | 1.65 | 2.8 | 68 | 200 | 0.35 |
Reduction Ratio
3.71
5.18
14
19
27
51
71
100
Number of Stage
1-stage
2-stage
3-stage
Rated Tolearance Torque
20 kg.cm
30 kg.cm
50 kg.cm
Max Breaking Torque
40 kg.cm
60 kg.cm
150 kg.cm
Efficiency
90%
81%
73%
Gearbox Length ("L2" Max)
27.0mm
34.1mm
41.0mm
Plug-in Connector
According to different requirement and application, we provide customized motor.
Common cases:
1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.
2) Special lead lengths, cables and crimped various connectors
3) Different pulleys, gears and couplings
4) Encoders, brakes and integrated drivers
5) Waterproof and dustproof treatment
6) High-temperature resistance
If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
