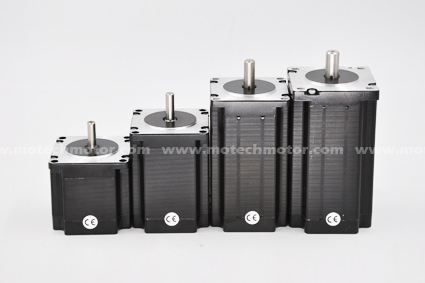

The NEMA 23 stepper motor features a standard faceplate measuring 2.3 inches (57.0 mm) square. Available step angles include 1.8° and 0.9°, with the 0.9° motors providing higher precision. The body length typically ranges from 41 mm to 110 mm, and torque output varies from 84 to 445 oz-in (6.0 to 32.0 kg·cm).

Due to its high torque and precision performance, the NEMA 23 stepper motor is widely used in CNC machines, robotics, and automation systems.

NEMA 23 standard hybrid stepper motor with a step angle 1.8°. Details are as follows:

https://www.motechmotor.com/productDetail-0105-30.html

NEMA 23 high-precision hybrid stepper motor with a step angle 0.9°. Details are as follows:

https://www.motechmotor.com/productDetail-0105-100.html

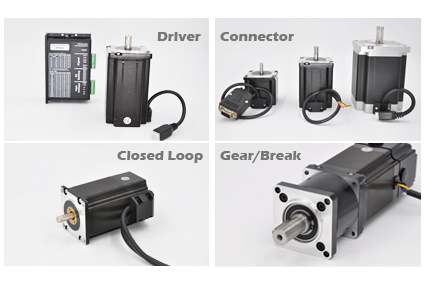

NEMA 23 hybrid stepper motor with an encoder. Details are as follows:

https://www.motechmotor.com/productDetail-0401-111.html

For custom specifications or requirements, please feel free to contact us. sales@motechmotor.com
