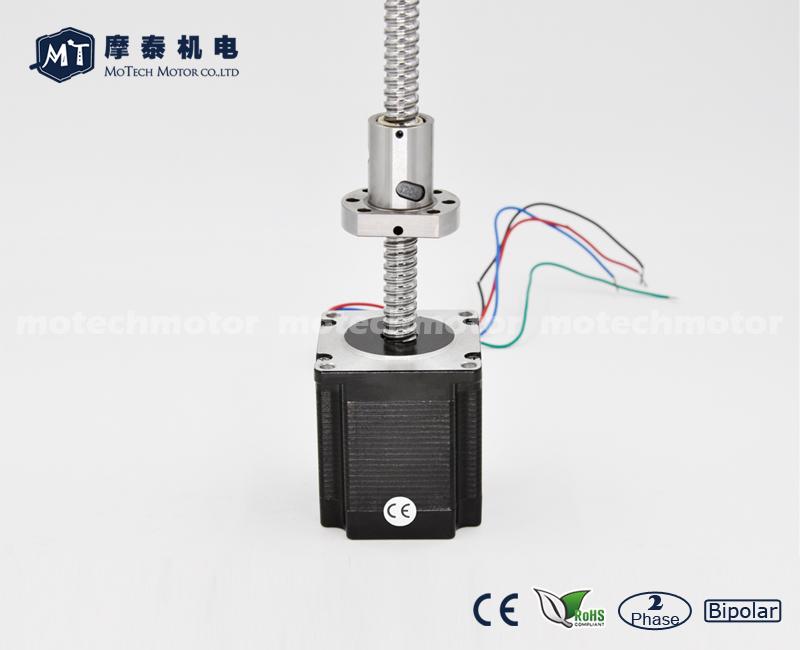

Nema 23 Ballscrew Motor

Nema 23 Ballscrew Motor | Model Number: MT-23BE | Holding Torque: 12.6~19.1kg.cm (175.0~265.0oz.in) | Current / Phase: 2.8A~3.0A | Frame Size: 57*57mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question

Motor Specifications

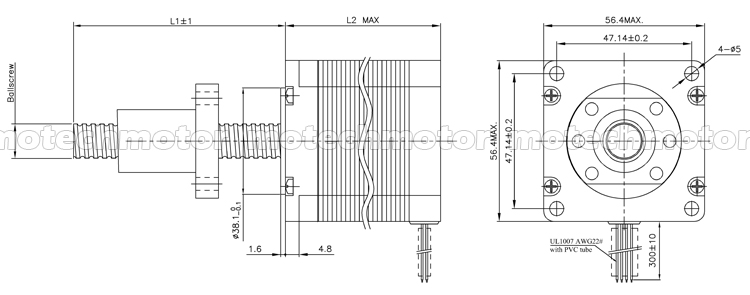

Dimension

“L2” Max

"E" External Nut

Model

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

56.0mm
(2.20")
MT-2303BEZ-L1BM
2.80 175.0 12.6 0.9 9.5
77.0mm
(3.03")
MT-2305BE囗Z-L1BM
3.00 265.0 19.1 1.1 5.0
 * Replace 囗 in model number with desired Ballscrew.

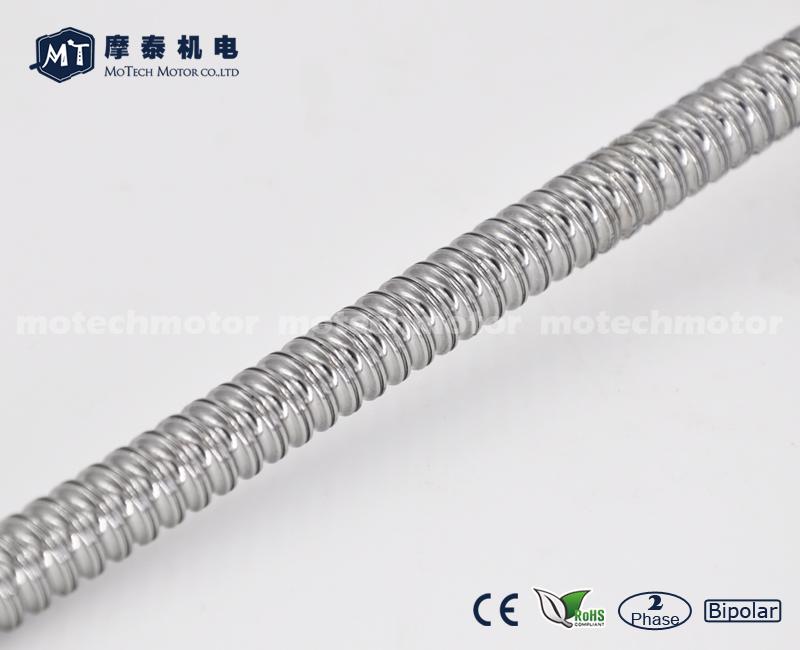

Available Ballscrews

Leadscrew Code

Screw Dia.

(mm)

Lead

(mm)

Travel per 1.8° Step

(mm)

1204
12.00 4.0 0.02
1604 16.00 4.0 0.02
1605 16.00 5.0 0.025
1610 16.00 10.0 0.05

Leads/Wires



Custom service


According to different requirement and application, we provide customized motor.

Common cases:

1)  Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2)  Special lead lengths, cables and crimped various connectors

3)  Different pulleys, gears and couplings

4)  Encoders, brakes and integrated drivers

5)  Waterproof and dustproof treatment

6)  High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
