External Driver
|
Item |
Specifications |
|
Step Angle |
1.8° |
|
Step Angle Accuracy |
1.8°±5% (full step, no load) |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature Rise |
80°C Max.(2 phase on) |
|
Ambient Temperature |
-20°C~+50°C |
|
Insulation Class |
B, 130°C |
|
Insulation Resistance |
100MΩMin. , 500VDC |
Motor Specifications
|

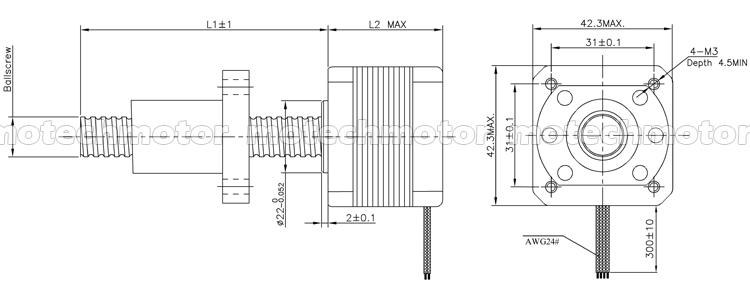

Dimension “L2” Max |
"E" External Nut Model
|
Rated Current
(Amps/Phase) |
Holding Torque (oz.in) |
Holding Torque (kg.cm) |
Resistance (Ohms/Phase) |
Inductance (mH/Phase) |
|
34.5mm
(1.34")
|
MT-1702BE1204Z-L1BM |
1.00 | 55.0 | 4.0 | 7.0 | 9.5 |
|
48.0mm
(1.89")
|
MT-1704BE1204Z-L1BM |
1.68 | 77.0 | 5.5 | 1.65 | 2.8 |
According to different requirement and application, we provide customized motor.
Common cases:
1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.
2) Special lead lengths, cables and crimped various connectors
3) Different pulleys, gears and couplings
4) Encoders, brakes and integrated drivers
5) Waterproof and dustproof treatment
6) High-temperature resistance
If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
