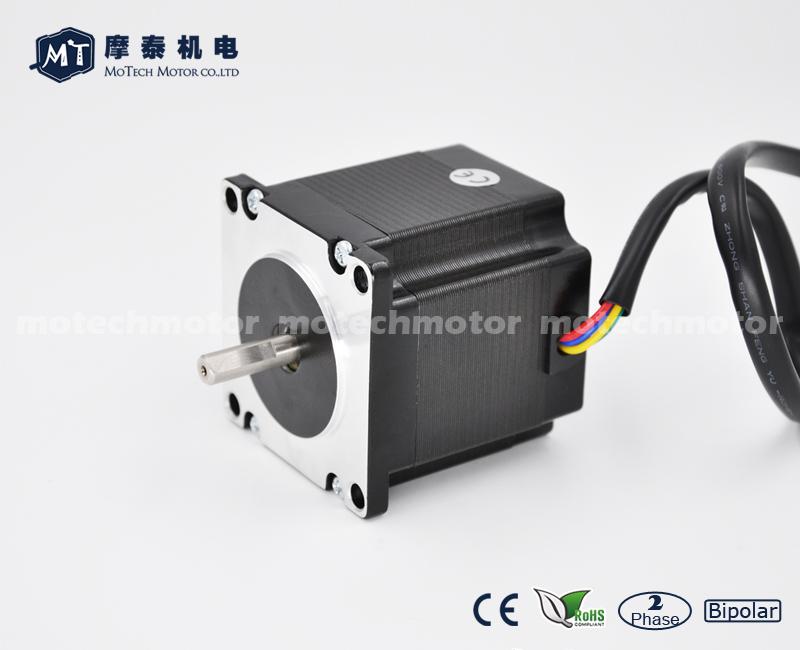

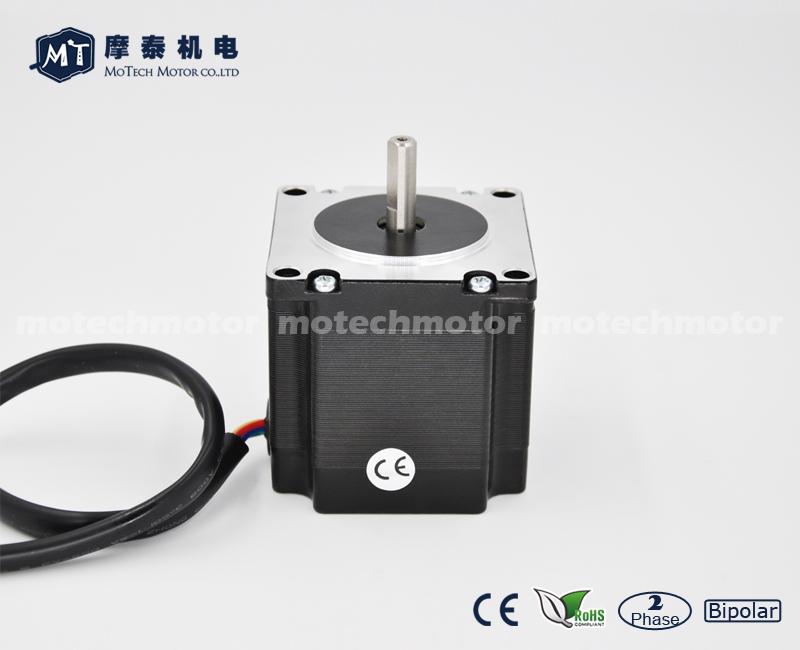

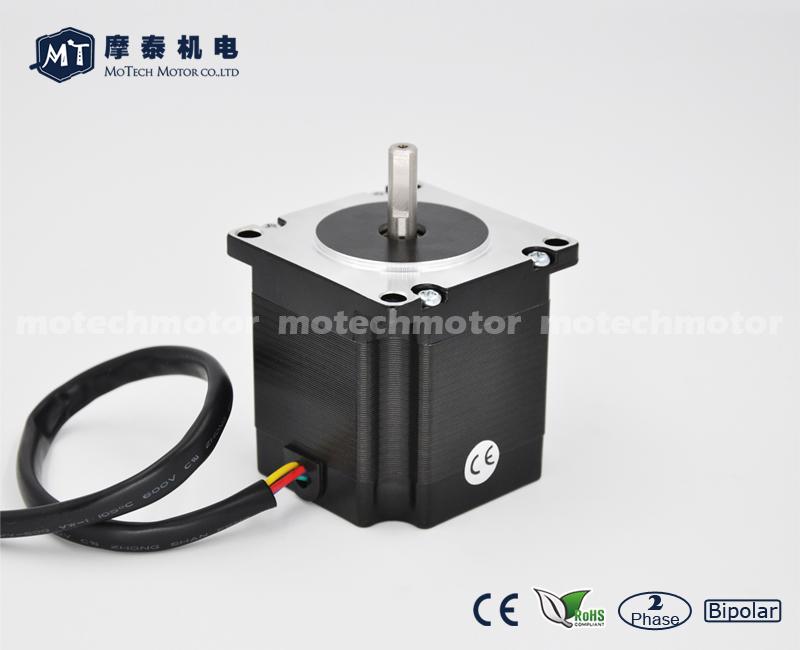

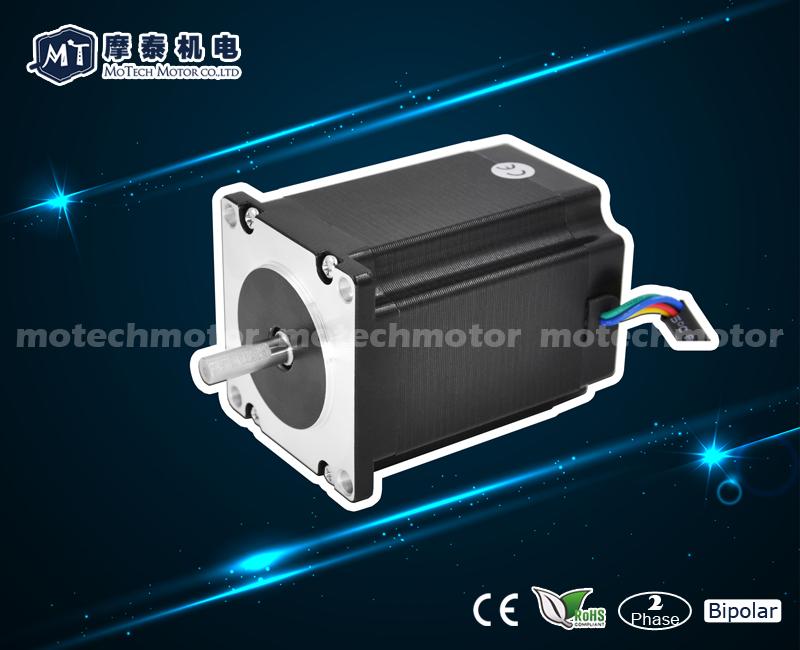

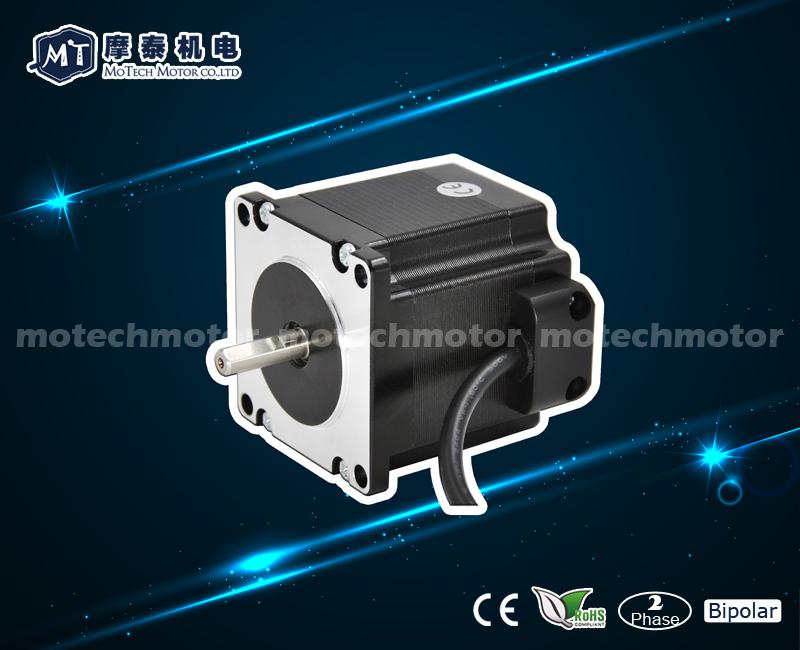

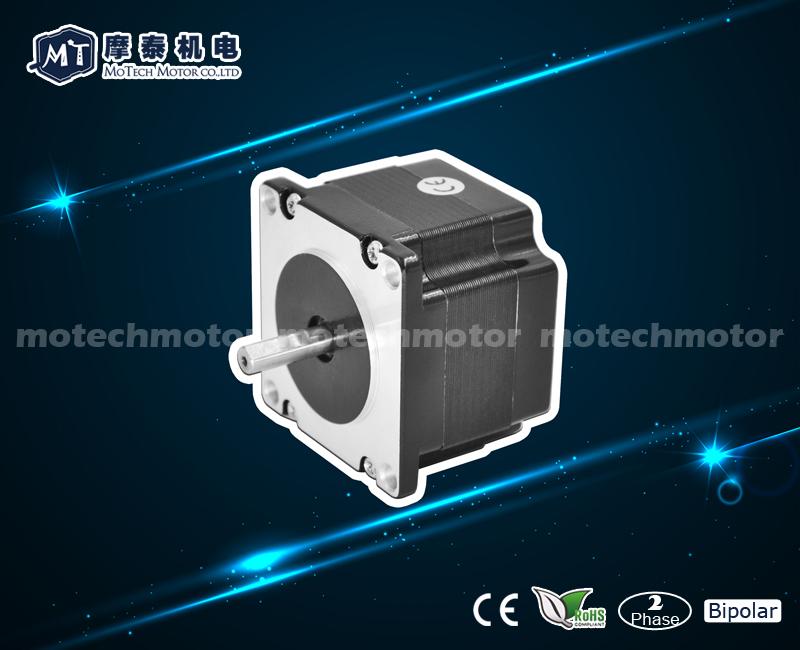

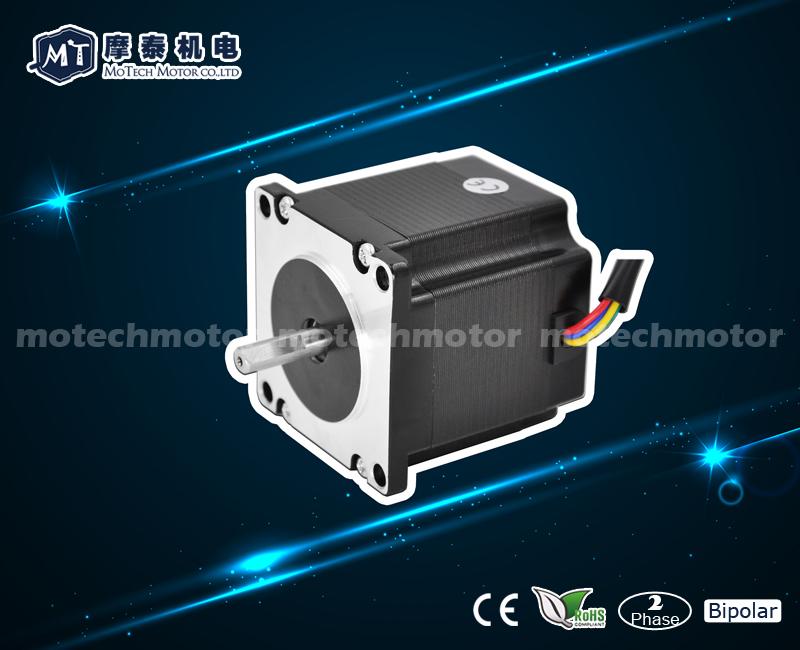

MT-2303HS280AW

Model Number: MT-2303HS280AW | Holding Torque: 175oz.in (12.6kg.cm) | Current / Phase: 2.80A | Frame Size: 57*57*56mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question

Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130°C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
75N  (20mm from the flange)
Max. axial force
15N


4 Lead Bi-Polar

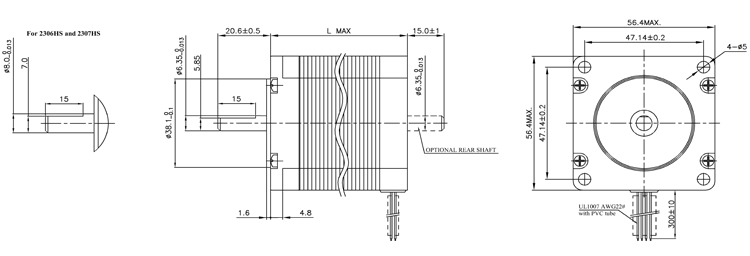

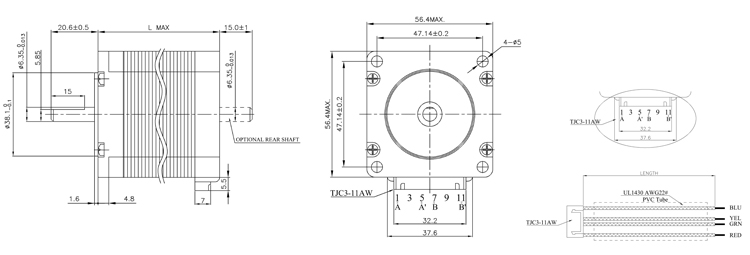

Dimension

“L” Max

Model #

Single Shaft

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

Inertia

(g.cm2)

Detent Torque

(g.cm)

Weight

(kg)

41.0mm
(1.62")
MT-2301HS200AW
2.00 84.0 6.0 1.10 3.4 120 210 0.45
MT-2301HS280AW
2.80 84.0 6.0 0.70 1.4 120 210 0.45
51.0mm
(2.00")
MT-2302HS200AW
2.00 160.0 11.5 1.40 5.1 275 360 0.65
MT-2302HS280AW 2.80 160.0 11.5 0.83 2.2 275 360 0.65
56.0mm
(2.20")
MT-2303HS200AW
2.00 175.0 12.6 1.40 5.1 300 400 0.72
MT-2303HS280AW
2.80 175.0 12.6 0.90 2.5 300 400 0.72
65.0mm
(2.56")
MT-2304HS250AW
2.50 223.0 16.0 2.00 7.6 340 400 0.85
77.0mm
(3.03")
MT-2305HS280AW
2.80 265.0 19.1 1.13 3.6 480 680 1.00
86.0mm
(3.39")
MT-2315HS300AW
3.00 340.0 24.5 1.2 4.0 670 1000 1.20
100.0mm
(3.94")
MT-2306HS300AW
3.00 430.0 31.0 2.80 11.0 680 1000 1.60
110.0mm
(4.33")
MT-2307HS310AW
3.10 445.0 32.0 1.90 7.3 810 1200 1.70


6 Lead Uni-Polar

Dimension

“L” Max

Model #

Single Shaft

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

Inertia

(g.cm2)

Detent Torque

(g.cm)

Weight

(kg)

41.0mm
(1.62")
MT-2301HS1006AW
1.00 55.5 4.0 5.7 5.4 120 210 0.45
51.0mm
(2.00")
MT-2302HS1006AW
1.00 101.0 7.3 6.6 8.2 275 360 0.65
56.0mm
(2.20")
MT-2303HS1006AW
1.00 126.0 9.1 7.4 10.0 300 400 0.72
77.0mm
(3.03")
MT-2305HS1006AW
1.00 189.0 13.6
8.6 14.0 480 680 1.00
MT-2305HS3006AW
3.00 189.0 13.6 1.0 1.6 480 680 1.00

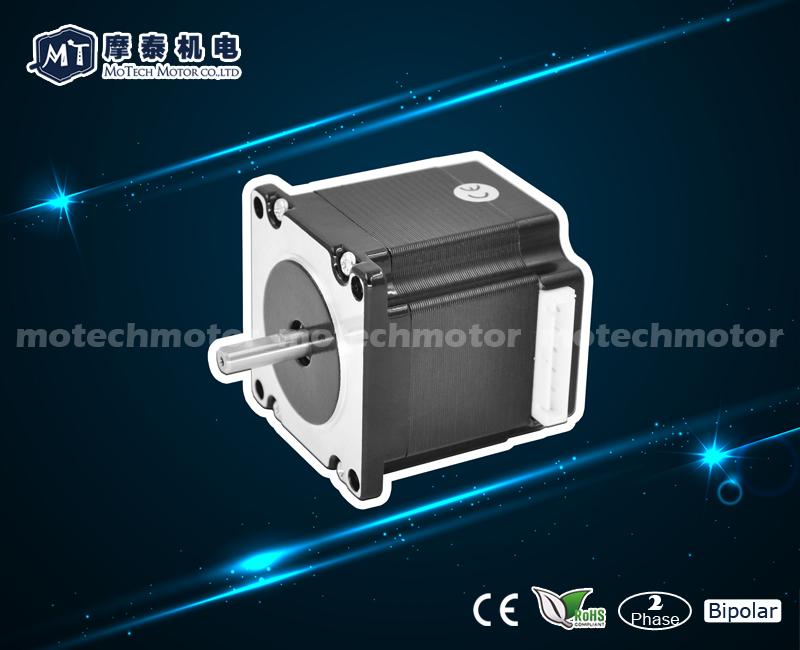

Plug-in Connector



Leads/Wires


Custom service


According to different requirement and application, we provide customized motor.

Common cases:

1)  Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2)  Special lead lengths, cables and crimped various connectors

3)  Different pulleys, gears and couplings

4)  Encoders, brakes and integrated drivers

5)  Waterproof and dustproof treatment

6)  High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
