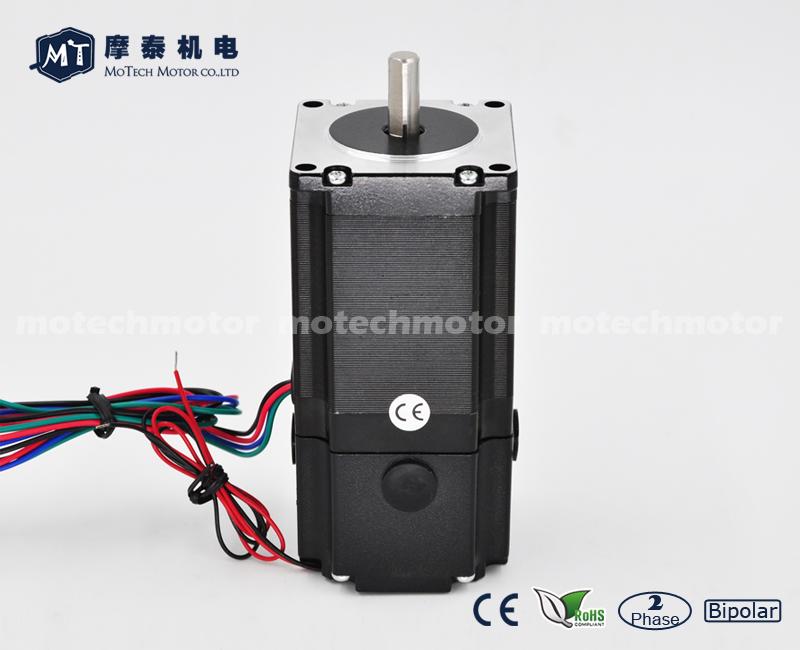

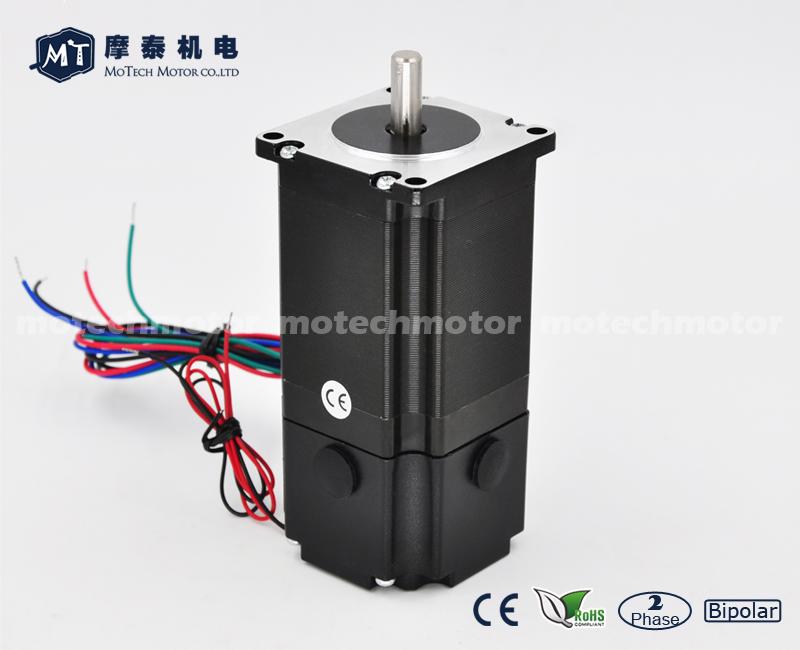

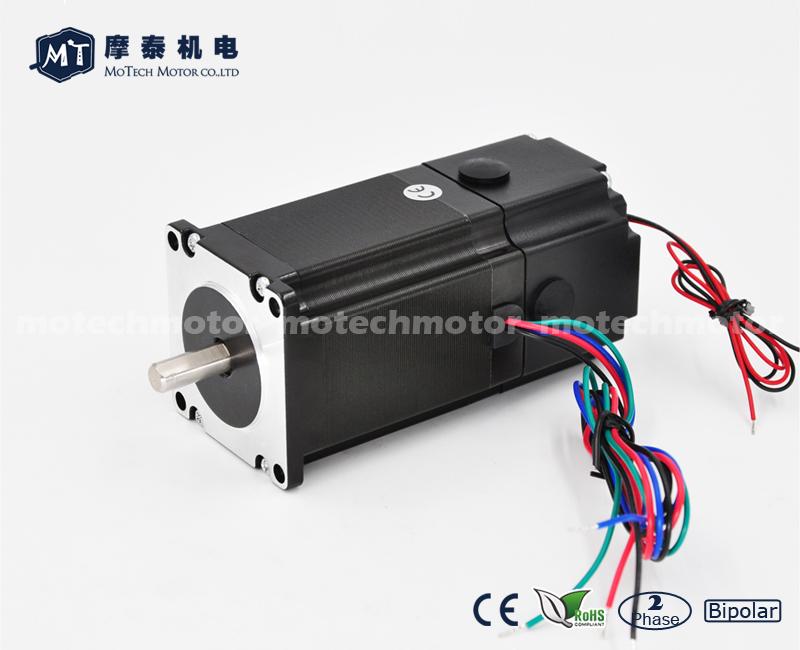

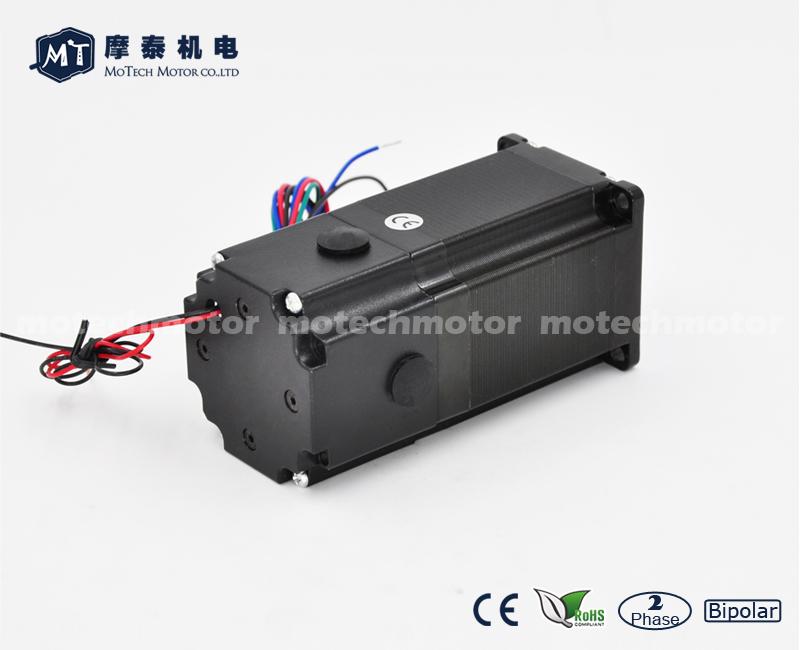

Nema 23 Brake Motor

Nema 23 Brake Motor | Model Number: MT-23HSBR | Holding Torque: 84.0~498.0 oz.in (6.0~36.7 kg.cm) | Current / Phase: 2.80A~4.00A | Frame Size: 57*57mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question

Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130°C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
75N  (20mm from the flange)
Max. axial force
15N

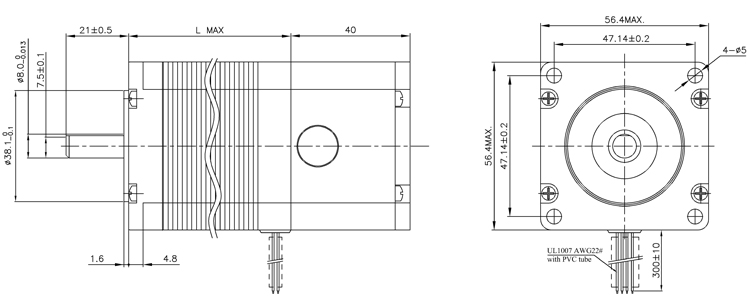

Dimension

“L” Max

Model #

Single Shaft

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

Inertia

(g.cm2)

Brake Torque

(kg.cm)

Brake Torque

(oz.in)

Brake Voltage

(VDC)

41.0mm
(1.62")
MT-2301HS280BR
2.80 84.0 6.0 0.70 1.4 120 20 278 24
56.0mm
(2.20")
MT-2303HS280BR 2.80 175.0 12.6 0.90 2.5 300
77.0mm
(3.03")
MT-2305HS280BR 2.80 265.0 19.1 1.13 3.6 480
86.0mm
(3.39")
MT-2315HS300BR
3.00 340.0 24.5 1.20 4.0 670
100.0mm
(3.94")
MT-2306HS300BR
3.00 430.0 31.0 2.80 11.0 690 30 417
113.0mm
(4.45")
MT-2307HS400BR
4.00 498.0 36.7 1.16 4.5 810

Leads/Wires


Custom service


According to different requirement and application, we provide customized motor.

Common cases:

1)  Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2)  Special lead lengths, cables and crimped various connectors

3)  Different pulleys, gears and couplings

4)  Encoders, brakes and integrated drivers

5)  Waterproof and dustproof treatment

6)  High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
