Closed Loop Driver
Features
|
No loss of step |
No tuning and always stable |
|
Do not need a high torque margin |
Fast response, no delay |
| Smooth motion and super-low motor noise |
No hunting or no inherent dither |
| Reduced motor heating and more efficient |
High torque at starting and low speed |
| Higher torque and higher speed |
Max 200 KHz input frequency |
Specifications
|
Electrical Specifications (Tj = 25 ) |
|
|
Supply voltage |
24～75 VDC (Typical 48VDC) |
|
Output current |
0 - 5.0A |
|
Pulse input frequency |
0-200KHZ |
|
Isolation resistance |
＞500MΩ。 |
|
Cooling |
Natural Cooling |
|
Environment |
Avoid dust, oil fog and corrosive gases |
|
Ambient Temperature |
0oC～＋65oC |
|
Humidity |
40%RH - 90%RH |
|
Operating Temperature |
50 oC Max |
|
Vibration |
5.9m/s2 Max |
|
Weight |
Approx. 250g |
Microstep Resolution Selection
|
Steps/rev.(for 1.8°motor) |
SW1 |
SW2 |
SW3 |
SW4 |
| 400 | ON | ON | ON |
ON |
| 800 | OFF | ON | ON |
ON |
| 1600 |
ON |
OFF |
ON |
ON |
| 3200 |
OFF |
OFF |
ON |
ON |
| 6400 |
ON |
ON |
OFF |
ON |
| 12800 |
OFF |
ON |
OFF |
ON |
| 25600 |
ON |
OFF |
OFF |
ON |
| 51200 |
OFF |
OFF |
OFF |
ON |
|
1000 |
ON |
ON |
ON |
OFF |
|
2000 |
OFF |
ON |
ON |
OFF |
| 4000 |
ON |
OFF |
ON |
OFF |
| 5000 |
OFF |
OFF |
ON |
OFF |
| 8000 |
ON |
ON |
OFF |
OFF |
| 10000 |
OFF |
ON |
OFF |
OFF |
| 20000 |
ON |
OFF |
OFF |
OFF |
| 40000 |
OFF |
OFF |
OFF |
OFF |
|
Motor Direction |
SW5 |
|
CCW |
OFF |
|
CW |
ON |
Current setting
SW6
Normal
OFF
Maximum
ON
|
Function |
SW7 |
SW8 |
|
PULSE+DIR |
OFF |
OFF |
|
PULSE+PULSE |
ON | OFF |
|
CTRL RUN-SELF |
OFF | ON |
|
CONT RUN-SELF |
ON |
ON |

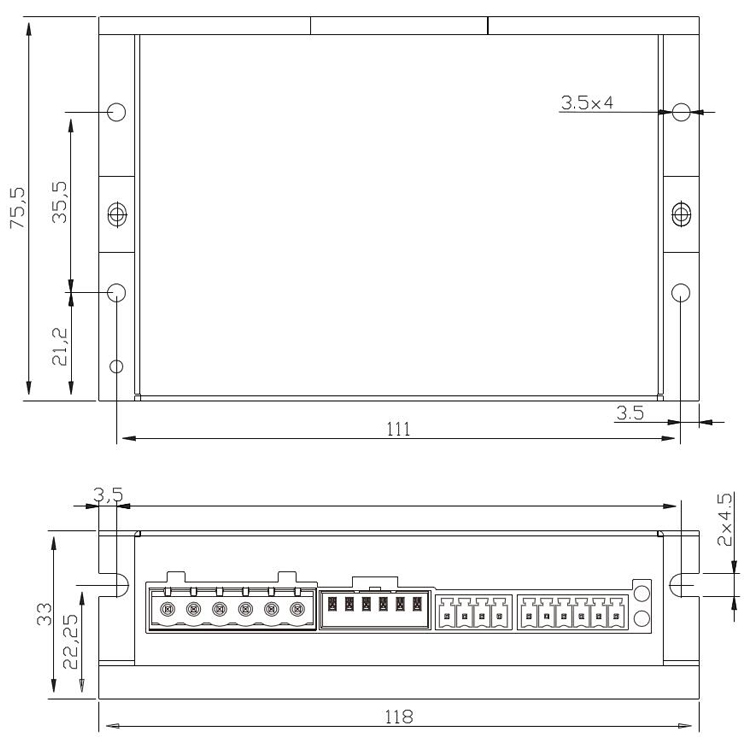

Mechanical Specifications(mm)
