High Precision Gearbox|

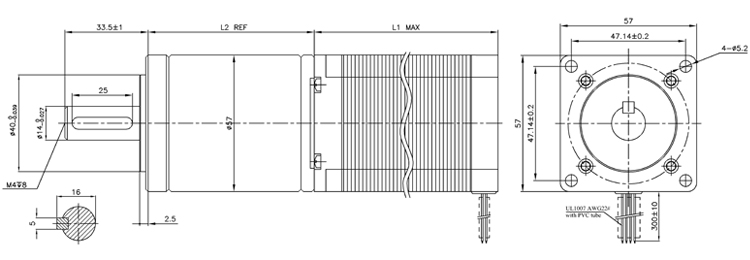

Dimension “L1” Max |
Model # Single Shaft |
Rated Current (Amps/Phase) |
Holding Torque (oz.in) |
Holding Torque (kg.cm) |
Resistance (Ohms/Phase) |
Inductance (mH/Phase) |
Inertia (g.cm2) |
Detent Torque (g.cm) |
Weight (kg) |
|
51.0mm
(2.00")
|
MT-2302HS280AW |
2.80 |
160.0 | 11.5 | 0.83 | 2.2 | 275 | 360 | 0.65 |
|
56.0mm (2.20") |
MT-2303HS280AW |
2.80 | 175.0 | 12.6 | 0.90 | 2.5 | 300 | 400 | 0.72 |
|
77.0mm (3.03") |
MT-2305HS280AW |
2.80 | 265.0 | 19.1 | 1.13 | 3.6 | 480 | 680 | 1.00 |
|
Reduction Ratio |
4 / 5 / 7 / 9 / 10 |
16 /20 / 25 / 28 / 36 / 40 / 45 / 49 / 50 / 63 / 70 / 81 / 90 / 100 |
|||||||
|
Number of Stage |
1-stage |
2-stage |
|||||||
|
Efficiency |
96.00% |
92.00% |
|||||||
|
Gearbox Length ("L2" Max) |
53.0mm |
70.0mm |
|||||||
|
Rated Tolerance Torque |
6 N.m |
25 N.m |
|||||||
|
Max Breaking Torque |
12 N.m |
40 N.m |
|||||||
|
Backlash (no load) |
<=15 Arcmin |
<=25 Arcmin |
|||||||
|
Max Radial Load |
400N |
400N |
|||||||
|
Weight |
0.8kg |
1.1kg |
|||||||
|
Noise |
<=45 db |
<=45 db |
|||||||
|
Lifetime |
20000h |
20000h |
|||||||
According to different requirement and application, we provide customized motor.
Common cases:
1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.
2) Special lead lengths, cables and crimped various connectors
3) Different pulleys, gears and couplings
4) Encoders, brakes and integrated drivers
5) Waterproof and dustproof treatment
6) High-temperature resistance
If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
