17E/17N Series

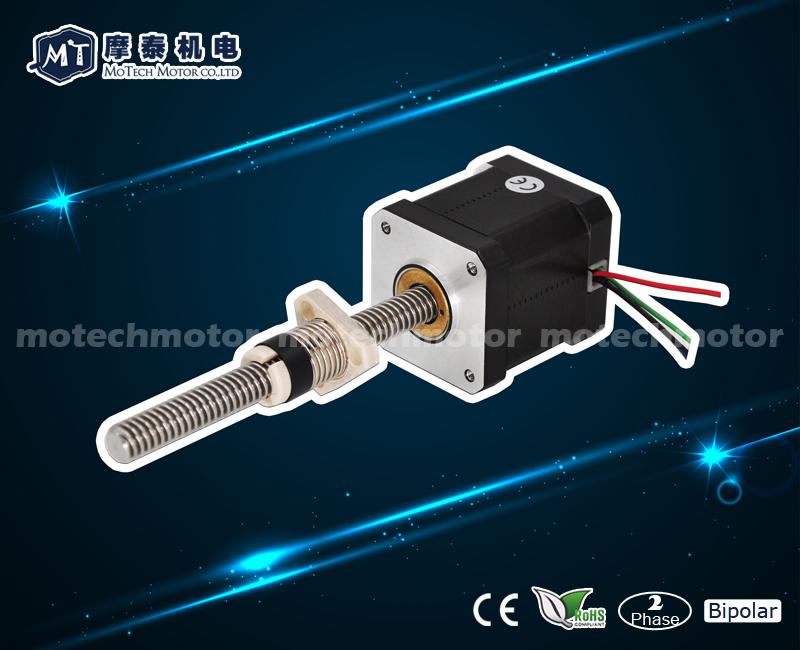

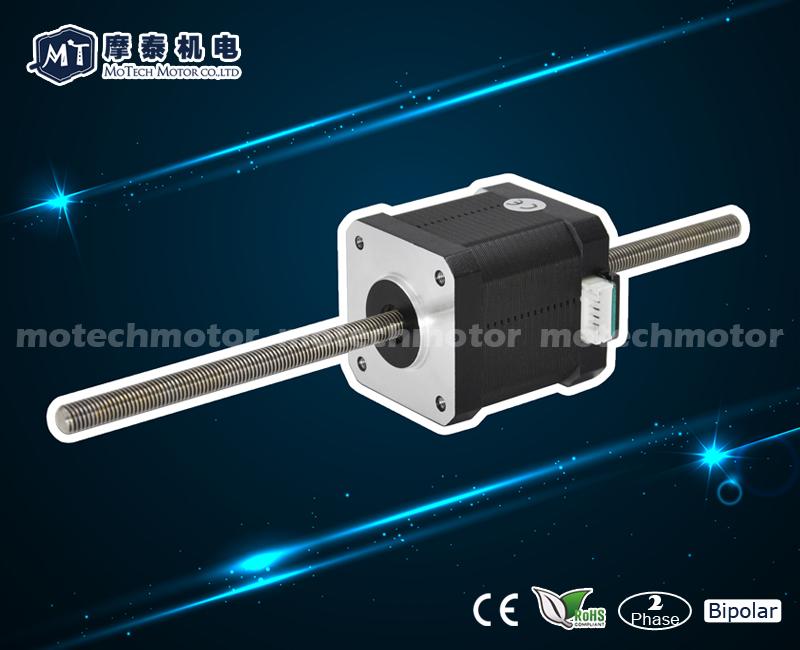

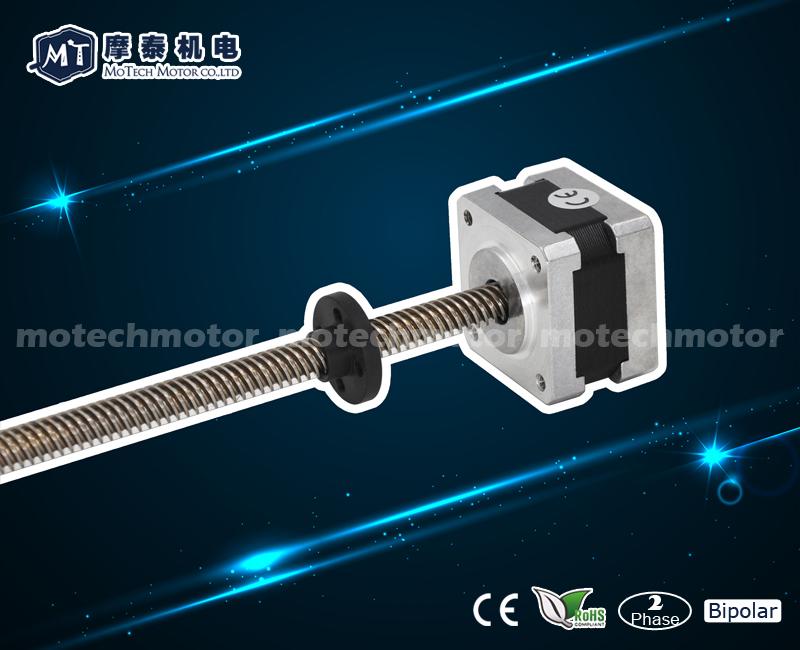

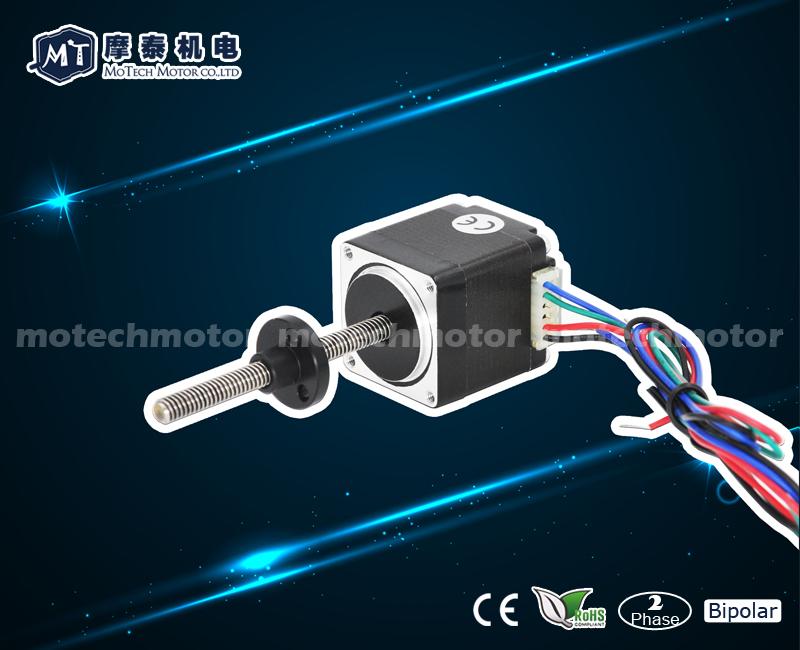

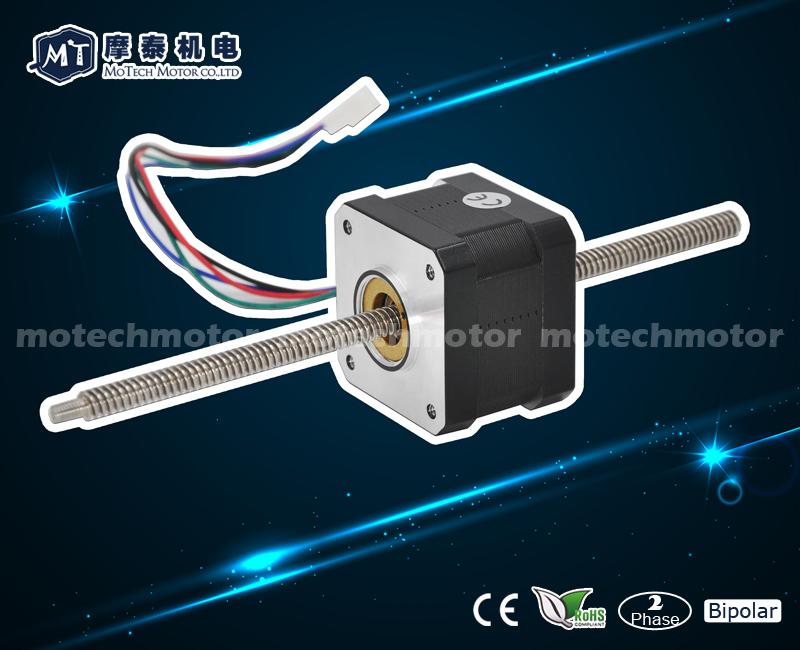

Nema 17 Linear Actuators | Model Number: MT-17E/N | Holding Torque: 3.2~8.2kg.cm (44~114oz.in) | Current / Phase: 0.4A~2.0A | Frame Size: 42*42mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question

Motor Specifications

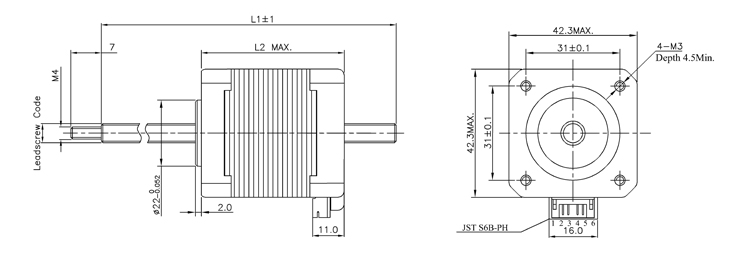

Dimension

“L2” Max

"E" External Nut

Model

"N" Non Captive

Model

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

34.0mm
(1.34")
MT-1702E100囗-L1
MT-1702N100囗-L1 1.00 55.0 4.0 7.0
MT-1702E133囗-L1
MT-1702N133囗-L1
1.33 44.0 3.2 2.1
40.0mm
(1.58")
MT-1703E040囗-L1
MT-1703N040囗-L1 0.40 55.0 4.0 30.0
MT-1703E120囗-L1
MT-1703N120囗-L1
1.20 55.0 4.0 1.7
48.0mm
(1.89")
MT-1704E050囗-L1
MT-1704N050囗-L1
0.50 70.0 5.0 24.0
MT-1704E168囗-L1
MT-1704N168囗-L1
1.68 77.0 5.5 1.65
60.0mm
(2.36")
MT-1705E200囗-L1

2.00 114 8.2 2.0
 * Replace 囗 in model number with desired leadscrew.

Available Lead-screws

Leadscrew Code

Screw Dia.

(mm)

Screw Dia.

(inch)

Lead

(mm)

Pitch

(mm)

Travel per 1.8° Step

(mm)

G1 8.00
5/16'' 4.0 2.0 0.02
G2 8.0 2.0
0.04
G3 10.0 2.0 0.05
G4 12.0 2.0 0.06
G5 20.0 2.5 0.10
G6 2.0 2.0 0.01
F1 6.35
1/4'' 1.588 1.5875 0.0079
F2 3.175 1.5875 0.0158
F3 6.350 1.5875
0.0318
F4 2.0 1.0 0.010
F5 3.0 1.0
0.015
F6 4.0 1.0
0.020
E1 5.56 7/32'' 2.438 1.2192 0.0122
E2 4.868 1.2192
0.0244
E3 9.754
1.2192
0.0488
* These values have been rounded off.

External nut


Non-Captive



Custom service


According to different requirement and application, we provide customized motor.

Common cases:

1)  Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2)  Special lead lengths, cables and crimped various connectors

3)  Different pulleys, gears and couplings

4)  Encoders, brakes and integrated drivers

5)  Waterproof and dustproof treatment

6)  High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
