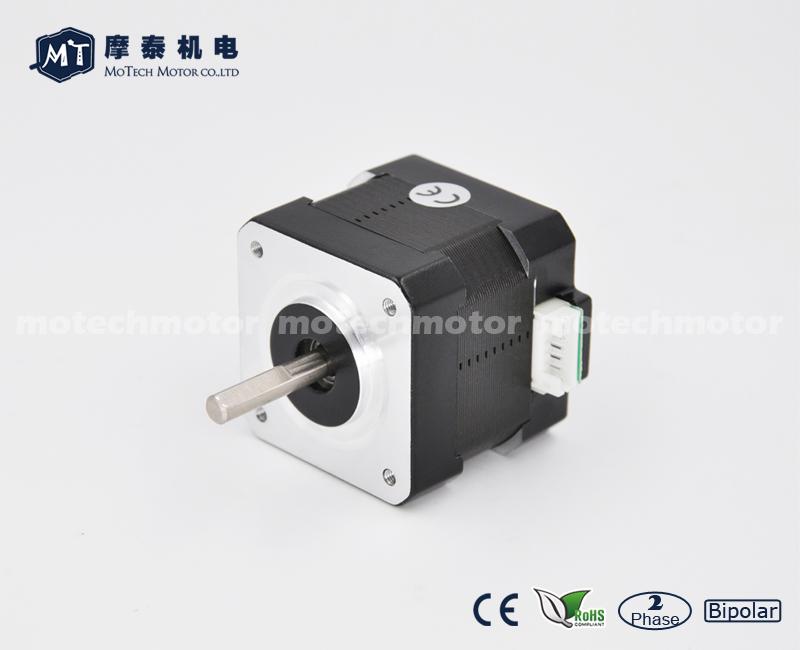

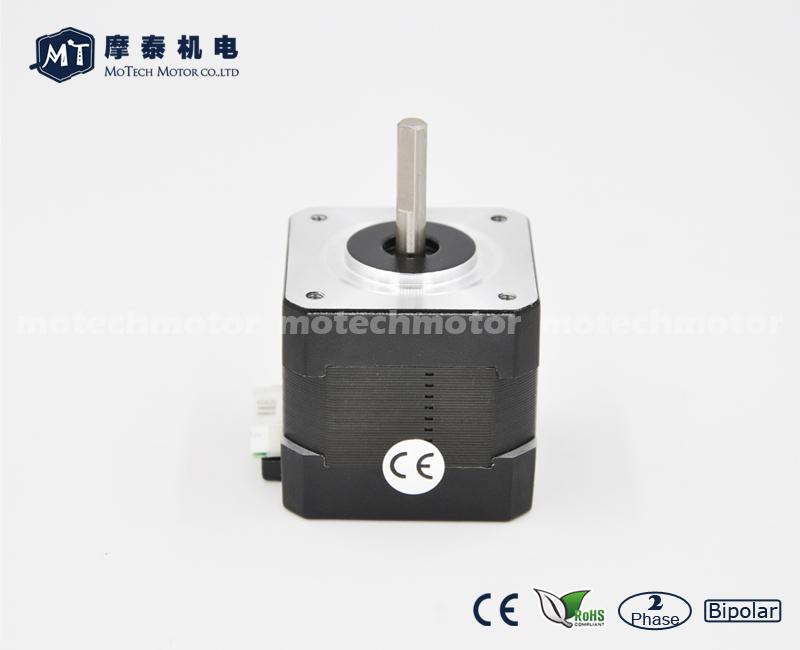

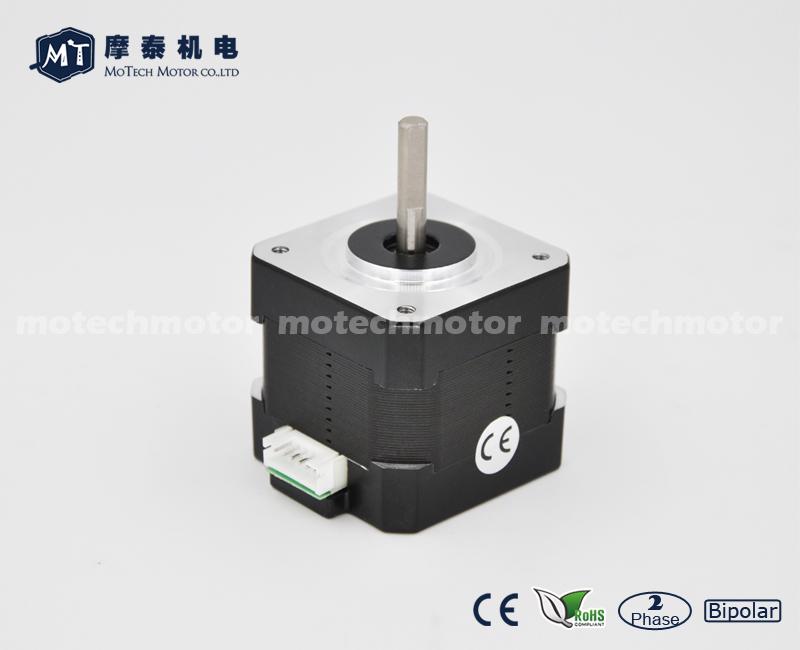

MT-1703HS168A

Model Number: MT-1703HS168A | Holding Torque: 62oz.in (4.4kg.cm) | Current / Phase: 1.68A | Frame Size: 42*42*40mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question

Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130°C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
28N  (20mm from the flange)
Max. axial force
10N


4 Lead Bi-Polar

Dimension

“L” Max

Model #

Single Shaft

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

Inertia

(g.cm2)

Detent Torque

(g.cm)

Weight

(kg)

26.0mm
(1.02")
MT-1701HS040A
0.40 24.0 1.7 24.0 36.0 20 75 0.15
MT-1701HS140A
1.40 21.0 1.5 1.9 2.0 20 75 0.15
34.0mm
(1.34")
MT-1702HS031A
0.31 35.0 2.5 38.5 21.0 35 120 0.22
MT-1702HS133A 1.33 44.0 3.2 2.1 2.5 35 120 0.22
40.0mm
(1.58")
MT-1703HS040A
0.40 56.0 4.0 30.0 58.0 54 150 0.28
MT-1703HS120A
1.20 62.0 4.4 3.0 6.0 54 150 0.28
MT-1703HS168A
1.68 62.0 4.4 1.65 3.6 54 150 0.28
48.0mm
(1.89")
MT-1704HS050A
0.50 70.0 5.0 24.0 36.0 68 200 0.35
MT-1704HS150A
1.50 77.0 5.5 2.8 5.5 68 200 0.35
MT-1704HS168A
1.68 77.0 5.5 1.65 2.8 68 200 0.35
60mm
(2.36")
MT-1705HS200A
2.00 114 8.2 2.0 3.3 102 280 0.55


6 Lead Uni-Polar

Dimension

“L” Max

Model #

Single Shaft

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

Inertia

(g.cm2)

Detent Torque

(g.cm)

Weight

(kg)

34.0mm
(1.34")
MT-1702HS0956A
0.95 22.0 1.6 4.2 2.5 35 120 0.22
40.0mm
(1.58")
MT-1703HS0406A
0.40 37.5 2.7 30.0 30.0 54 150 0.28
48.0mm
(1.89")
MT-1704HS0406A
0.40 45.0 3.2 30.0 25.0 68 200 0.35
60mm
(2.36")
MT-1705HS1206A
1.20 90.0 6.5 6.0 7.0 102 280 0.55
