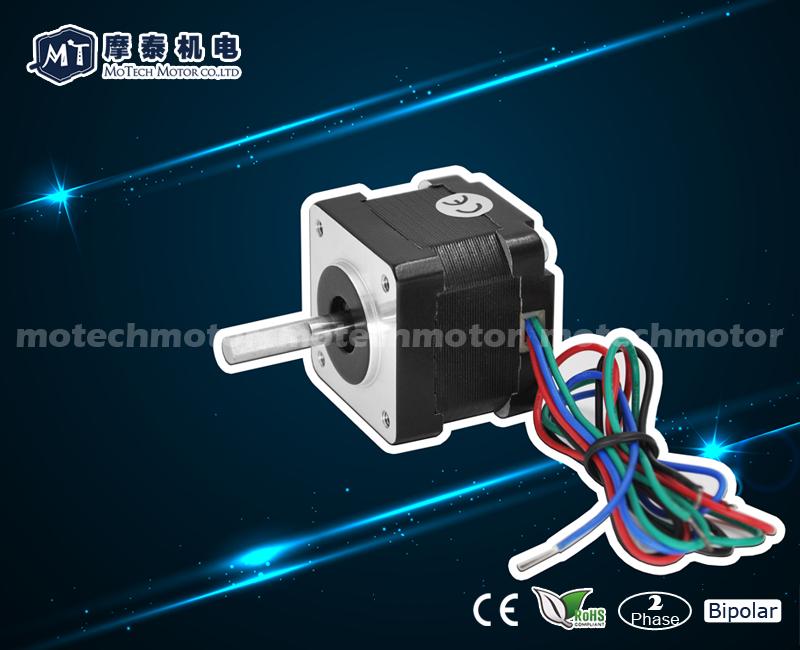

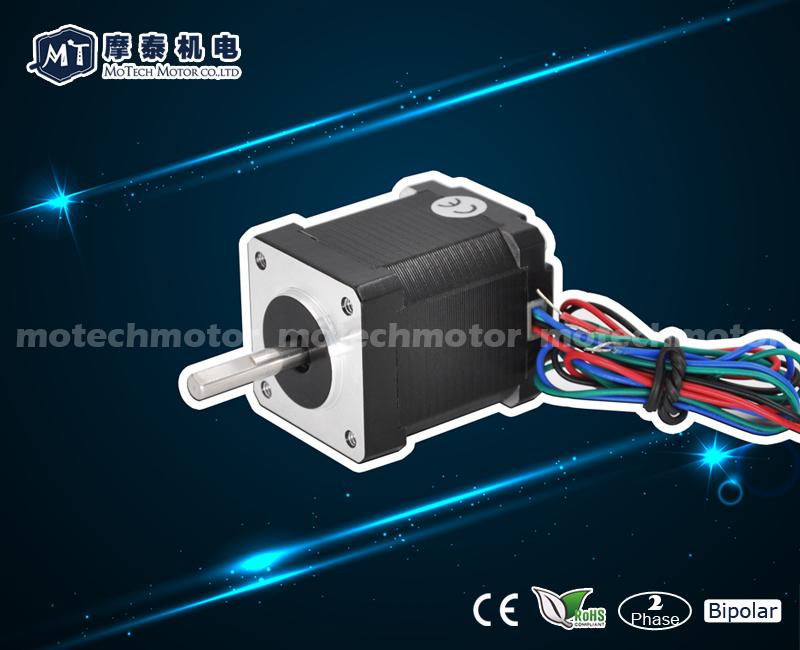

Nema 14 (35mm)|
Item |
Specifications |
|
Step Angle |
0.9° |
|
Step Angle Accuracy |
0.9°±5% (full step, no load) |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature Rise |
80°C Max.(2 phase on) |
|
Ambient Temperature |
-20°C~+50°C |
|
Insulation Class |
B, 130°C |
|
Insulation Resistance |
100MΩMin. , 500VDC |
|
Shaft Radial Play |
0.02Max. (450 g-load) |
|
Shaft Axial Play |
0.08Max. (450 g-load) |
|
Max. radial force |
28N (20mm from the flange) |
|
Max. axial force |
10N |
|

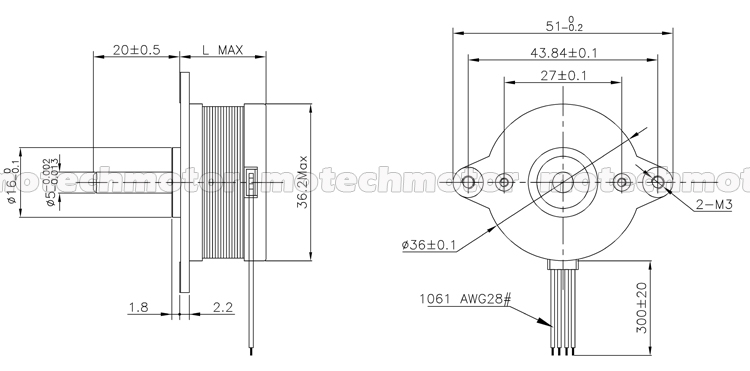

Dimension “L” Max |
Model # Single Shaft |
Rated Current
(Amps/Phase) |
Holding Torque
(oz.in) |
Holding Torque
(kg.cm) |
Resistance
(Ohms/Phase) |
Inductance
(mH/Phase) |
Inertia
(g.cm2) |
Detent Torque (g.cm) |
Weight (kg) |
|
13.0mm
(0.51")
|
MT-1401HRM050AW |
0.5 | 10.0 | 0.7 | 17.0 | 7.5 | 11 | 30 | 0.10 |
|
17.5mm
(0.69")
|
MT-1402HRM040AW |
0.4 | 11.1 | 0.8 | 9.0 | 11.0 | 11 | 40 | 0.11 |
|
20.5mm
(0.81")
|
MT-1403HRM050AW |
0.5 | 13.9 | 1.0 | 10.0 | 13.0 | 19 | 50 | 0.13 |
Leads/Wires
According to different requirement and application, we provide customized motor.
Common cases:
1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.
2) Special lead lengths, cables and crimped various connectors
3) Different pulleys, gears and couplings
4) Encoders, brakes and integrated drivers
5) Waterproof and dustproof treatment
6) High-temperature resistance
If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
