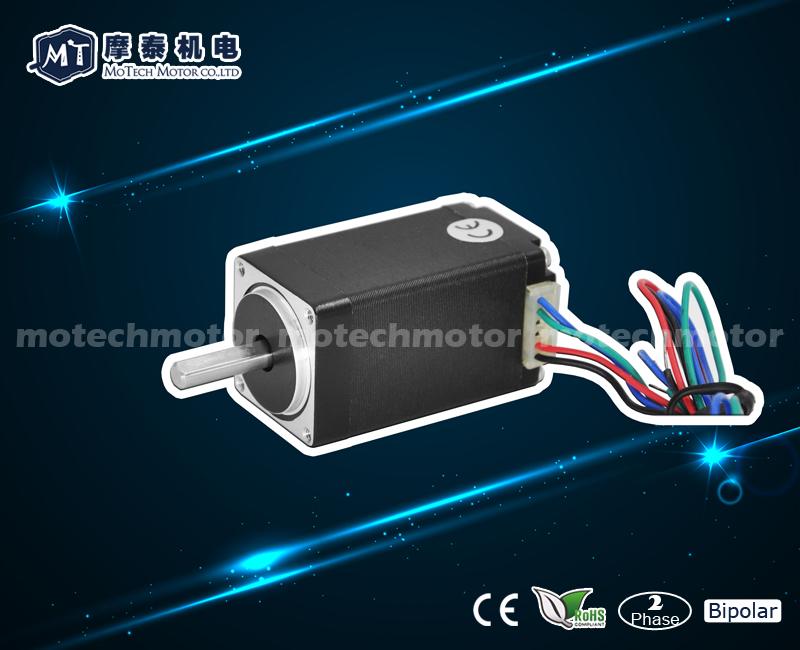

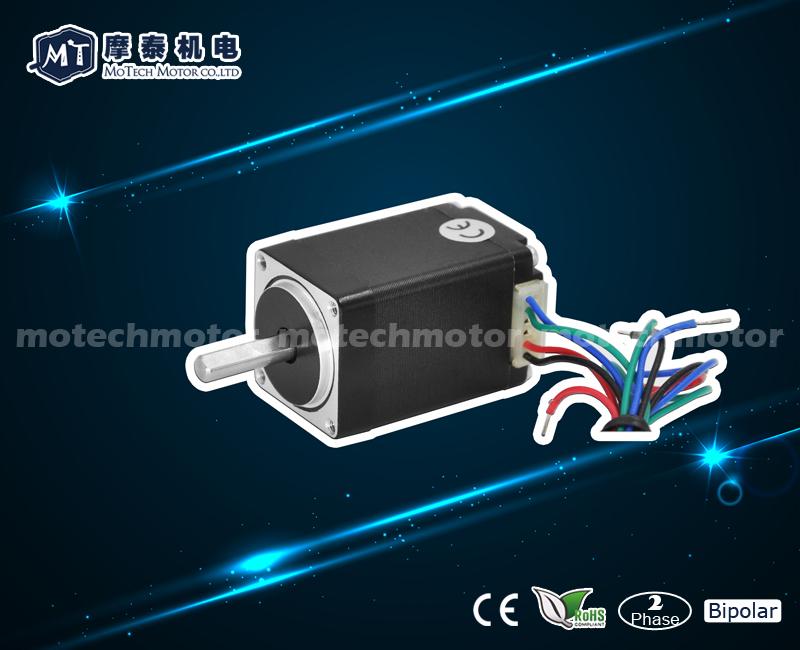

Nema 11 Stepper Motor

Nema 11 Stepper Motor | Model Number: MT-11HS | Holding Torque: 0.6~1.2kg.cm (8.3~16.7oz.in) | Current / Phase: 0.7A | Frame Size: 28*28mm | Certification: CE, ISO, ROHS
  • Product Desc
  • Product Detail
  • Ask a question
Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130°C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
28N  (20mm from the flange)
Max. axial force
10N

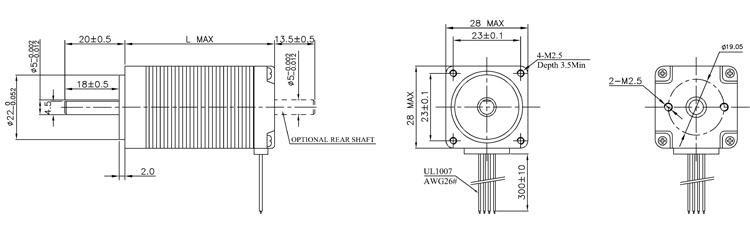

Dimension

“L” Max

Model #

Single Shaft

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

Inductance

(mH/Phase)

Inertia

(g.cm2)

Weight

(kg)

32.0mm
(1.26")
MT-1101HS070AD 0.70 8.3 0.60 5.6 3.4 9.0 0.11
44.5mm
(1.75")
MT-1102HS070AD
0.70 13.2 0.95 6.8 4.9 12.0 0.14
51.0mm
(2.00")
MT-1103HS070AD
0.70 16.7 1.20 9.2 7.2 18.0 0.20

Leads/Wires


Custom service


According to different requirement and application, we provide customized motor.

Common cases:

1) Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2) Special lead lengths, cables and crimped various connectors

3)  Different pulleys, gears and couplings

4)  Encoders, brakes and integrated drivers

5)  Waterproof and dustproof treatment

6)  High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
